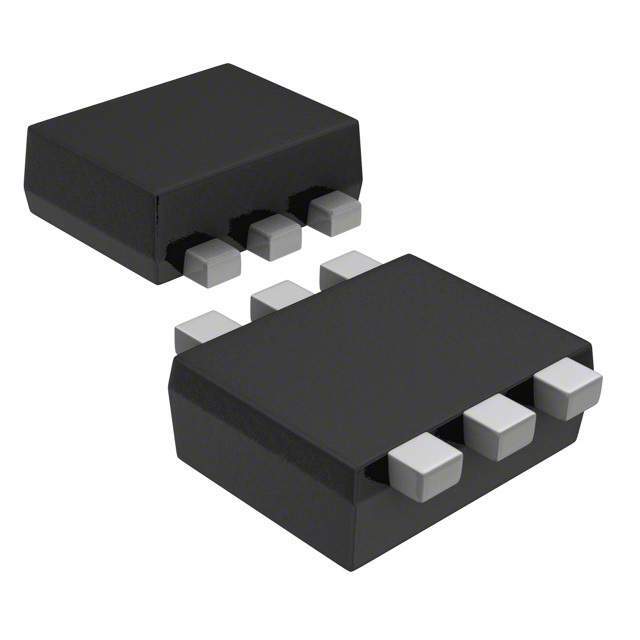

Same model may have multiple batches, images only for reference.
UCLAMP0505A.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

UCLAMP0505A.TCT

Part No UCLAMP0505A.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC SC89
Datasheet
UCLAMP0505A.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 7A (8/20μs)
Power Dissipation - Pd 100W
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-89-6
Win Source Part Number 035857-UCLAMP0505A.TCT
Family Name uClamp0505A
Introduction Date June 24, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian UCLAMP0505A.TCT CAD Model

Description

The Semtech Corporation UCLAMP0505A.TCT is a Zener type surface mount electronic component with 5 unidirectional channels and a capacitance of 60pF @ 1MHz.

  • Clamping Voltage: 12V (Max)
  • Peak Pulse Current: 7A (8/20μs)
  • Application: circuit protection
  • Popularity: high popularity
  • Supply and demand status: sufficient
