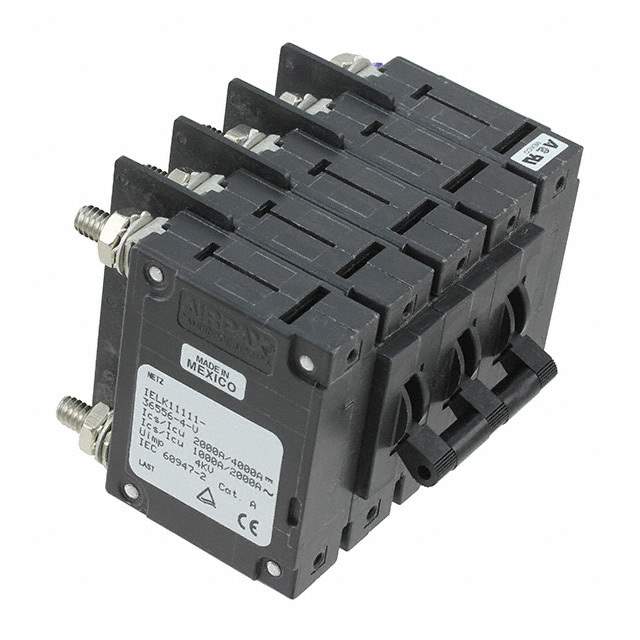

IELK11111-36556-4-V Real Image
Same model may have multiple batches, images only for reference.

IELK11111-36556-4-V

Part No IELK11111-36556-4-V
Manufacturer Sensata-Airpax
Catalog Circuit Breakers
Description CIRCUIT BREAKER MAG-HYDR LEVER / Circuit Breaker Magnetic (Hydraulic Delay) 30A 250 V AC DC Lever Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Circuit Breakers
Mfr Sensata-Airpax
Series IEL
Package Bulk
Mounting Type Panel Mount
Breaker Type Magnetic (Hydraulic Delay)
Current Rating (Amps) 30A
Voltage Rating - AC 250 V
Actuator Type Lever
Number of Poles 5
Illumination None
Approval Agency UL1077
Base Product Number IELK11111
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.20.0020
Other Names 2266-IELK11111-36556-4-V,723-1298,IELK11111-36556-4-V-ND
Standard Package 1
Win Source Part Number 1066501-IELK11111-36556-4-V
Ultra Librarian 3D Model Ultra Librarian IELK11111-36556-4-V CAD Model

Description

The IEL circuit breaker from Sensata-Airpax is a high-quality magnetic (hydraulic delay) circuit breaker that is designed for panel mount applications.

  • Circuit Breaker Type: Magnetic (Hydraulic Delay)
  • Mounting Type: Panel Mount
  • Voltage Rating: 250 V AC
  • Current Rating: 30A
  • Actuator Type: Lever
  • Number of Poles: 5
  • Approval: UL1077
  • Packaging: Bulk
