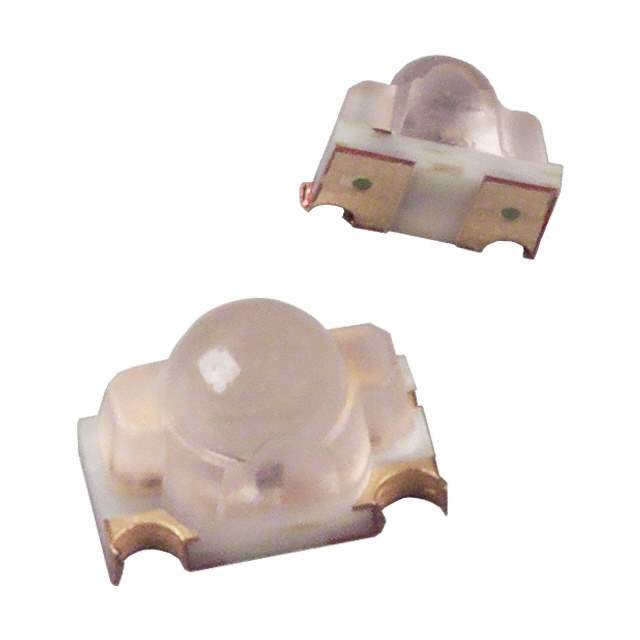

GL100MN1MP1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer SHARP/Socle Technology
Packaging Reel
Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 50mA
Wavelength 940nm
Voltage - Forward (Vf) 1.2V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1177174-GL100MN1MP1
Manufacturer Homepage sharp-world.com/
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GL100MN1MP
Introduction Date January 15, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian GL100MN1MP1 CAD Model

Description

The SHARP/Socle Technology GL100MN1MP1 is an infrared (IR) electronic component with a viewing angle of 20 degrees and a wavelength of 940nm. The GL100MN1MP1 is manufactured by SHARP/Socle Technology.

  • Viewing Angle: 20 degrees
  • Wavelength: 940nm
  • Supply and Demand Status: Sufficient
  • Product Status: Obsolete (EOL)
  • Suitable for: Optoelectronics
  • Package: 2-SMD, no-lead
  • Current - DC Forward (If) (Maximum): 50mA
  • Voltage - Forward (Vf): 1.2V
  • Radiant Intensity (Ie) min @ If: Not available
