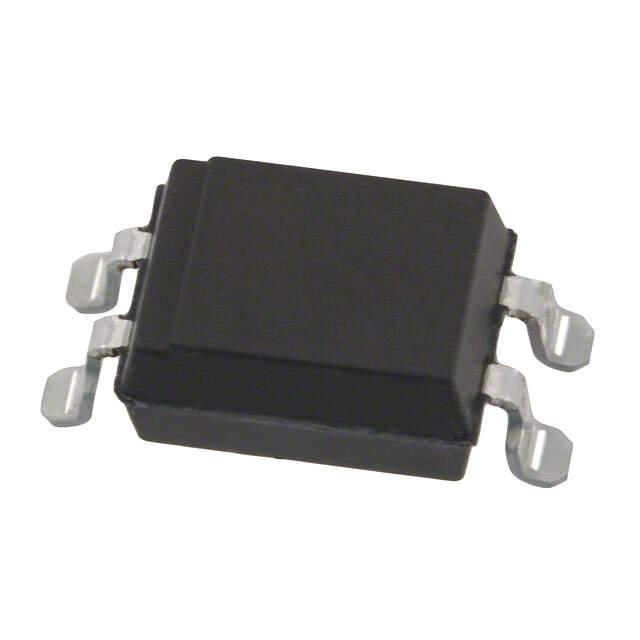

PC123XNYIP0F Real Image
Same model may have multiple batches, images only for reference.

PC123XNYIP0F

Part No PC123XNYIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD / DIP 4pin Reinforced Insulation Type Photocoupler
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sharp Microelectronics
Packaging Reel
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% at 5mA
Current Transfer Ratio (Maximum) 400% at 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803207-PC123XNYIP0F
Ultra Librarian 3D Model Ultra Librarian PC123XNYIP0F CAD Model

Description

The Sharp Microelectronics PC123XNYIP0F is a transistor output optocoupler in a 4-SMD package.

  • Voltage: 70V
  • Current Transfer Ratio: 50% @ 5mA
  • Rise/Fall Time: 4μs, 3μs
  • Forward Voltage: 1.2V
  • Vce Saturation: 200mV
  • Applications: DC Input
  • Isolation Voltage: 5000Vrms
  • Manufacturer Pack Quantity: 2000
