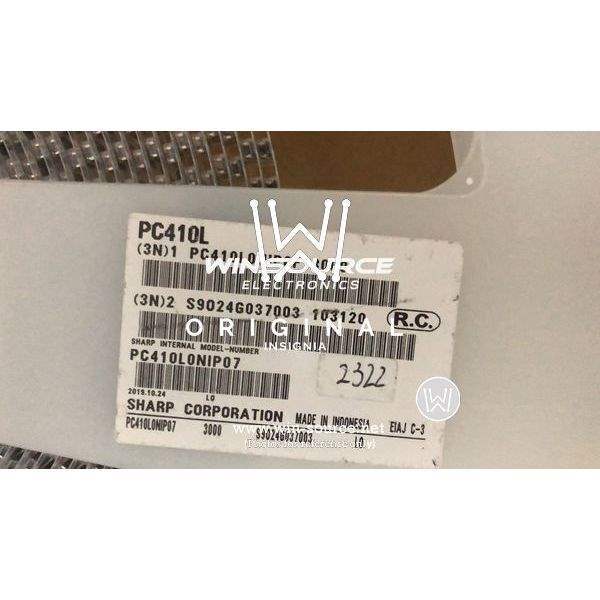

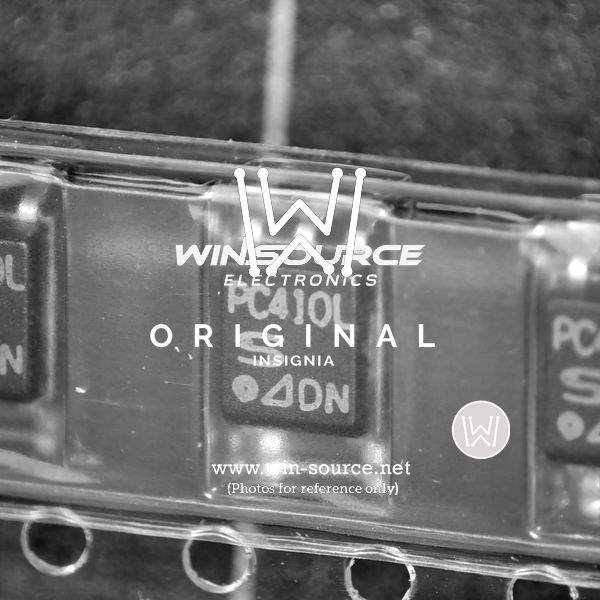

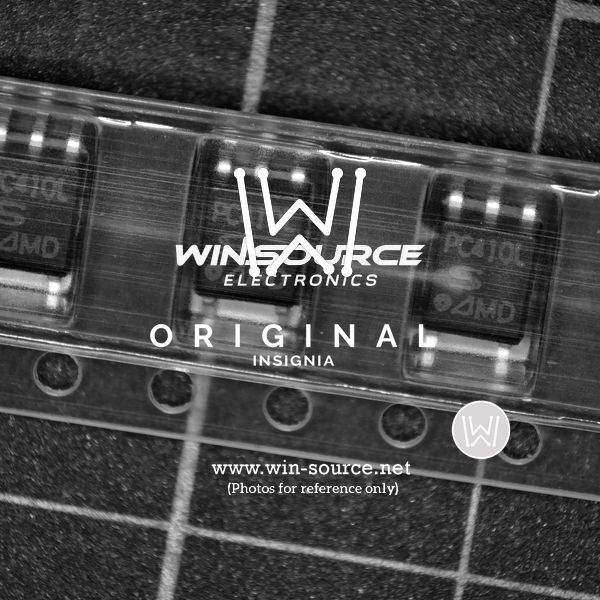

PC410L0NIP0F Sharp Microelectronics PC410L0NIP0F Real Image PC410L0NIP0F Real Image1 PC410L0NIP0F Real Image2 PC410L0NIP0F real image PC410L0NIP0F label picture 2
Same model may have multiple batches, images only for reference.
PC410L0NIP0F Sharp Microelectronics PC410L0NIP0F Real Image PC410L0NIP0F Real Image1 PC410L0NIP0F Real Image2 PC410L0NIP0F real image PC410L0NIP0F label picture 2
PC410L0NIP0F Sharp Microelectronics PC410L0NIP0F Real Image PC410L0NIP0F Real Image1 PC410L0NIP0F Real Image2 PC410L0NIP0F real image PC410L0NIP0F label picture 2
Same model may have multiple batches, images only for reference.

PC410L0NIP0F

Part No PC410L0NIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL 5SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.6V
Continuous forward current- Max 20mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 5-SOP
Win Source Part Number 026430-PC410L0NIP0F
Family Name PC410L
Introduction Date July 28, 2005
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PC410L0NIP0F CAD Model

Description

The Sharp Microelectronics PC410L0NIP0F is a high-quality optocoupler that is designed to provide excellent isolation and noise immunity.

  • Output Type: Single Channel
  • Data Rate: 10Mbps
  • Isolation Voltage: 3750Vrms
  • Common Mode Transient Immunity: 10kV/μs
  • Rise Time: 20ns
  • Fall Time: 10ns
  • Propagation Delay: 75ns
  • Package: 5-SOP
  • Operating Temperature: -40°C to 85°C
  • Popularity: High
