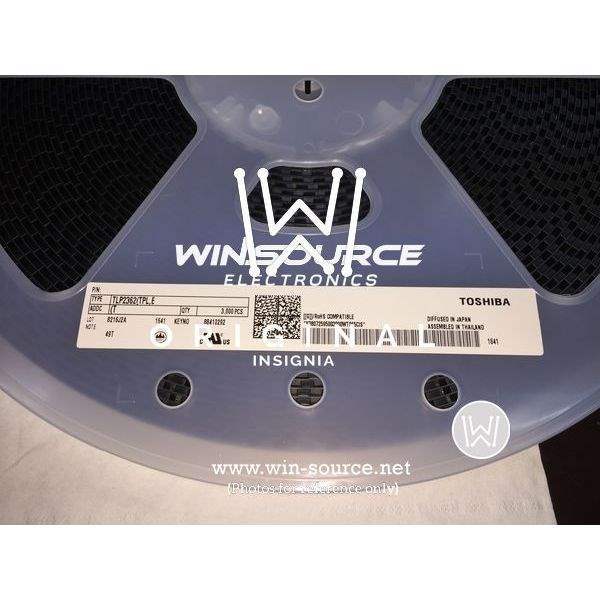

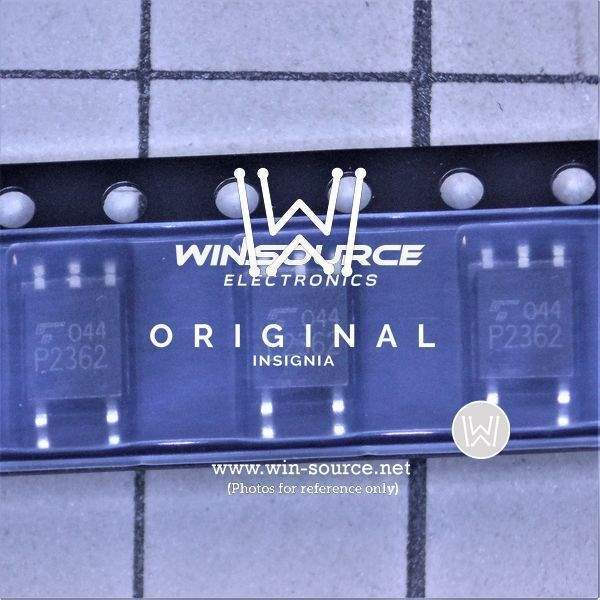

TLP2362(TPL,E) Toshiba Semiconductor and Storage TLP2362(TPL,E) real image TLP2362(TPL,E) label picture
Same model may have multiple batches, images only for reference.
TLP2362(TPL,E) Toshiba Semiconductor and Storage TLP2362(TPL,E) real image TLP2362(TPL,E) label picture
TLP2362(TPL,E) Toshiba Semiconductor and Storage TLP2362(TPL,E) real image TLP2362(TPL,E) label picture
Same model may have multiple batches, images only for reference.

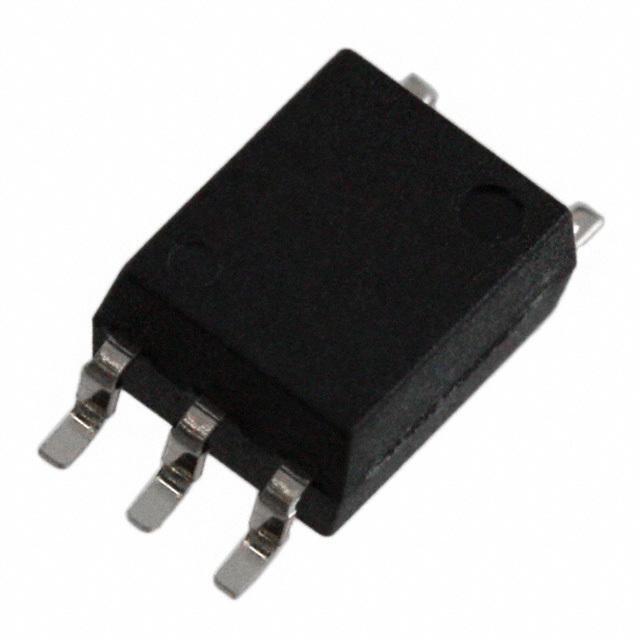

TLP2362(TPL,E)

Part No TLP2362(TPL,E)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description Photocouplers GaAlAs Infrared LED and Photo IC / Logic Output Optoisolator 10MBd Open Collector 3750Vrms 1 Channel 20kV/μs CMTI 6-SO, 5 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Logic Output
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel(TR)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Open Collector
Current - Output / Channel 25mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Rise / Fall Time (Typ) 30ns, 30ns
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 25mA
Operating Supply Voltage 2.7 V ~ 5.5 V
Operating Temperature Range -40°C ~ 125°C
Mounting Style SMD/SMT
Package 6-SOIC (0.179", 4.55mm Width) 5 Leads
Manufacturer Device Package 6-SO, 5 Lead
Win Source Part Number 218097-TLP2362(TPL,E)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TLP2362(TPL,E
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TLP2362(TPL,E) CAD Model

Description

The TLP2362(TPL,E) is an optoisolator manufactured by Toshiba Semiconductor and Storage.

  • Supply and Demand Status: balanced
