Same model may have multiple batches, images only for reference.

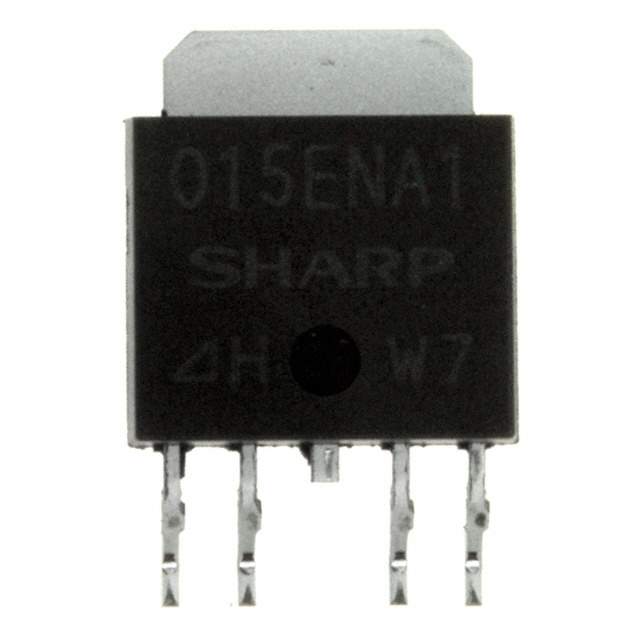

PQ015ENA1ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ015ENA1ZPH

Part No PQ015ENA1ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.5V 1A SC63
Datasheet
PQ015ENA1ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.5V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026831-PQ015ENA1ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ015ENA1ZPH CAD Model

Description

The PQ015ENA1ZPH is a positive fixed voltage regulator produced by Sharp Microelectronics. It is a medium popularity item that is currently obsolete (EOL) in the market.

  • Output Current: 1A (Maximum)
  • Control Function: Enable
  • Maximum Input Voltage: 10V
  • Nominal Output Voltage: 1.5V
  • Dropout Voltage: -
  • PSRR: 60dB (120Hz)
  • Operating Temperature: -40°C to 85°C (Maximum)
  • Protection Features: Overcurrent and overtemperature protection
  • Package: SC-63
  • Status: Obsolete (EOL)
