Same model may have multiple batches, images only for reference.

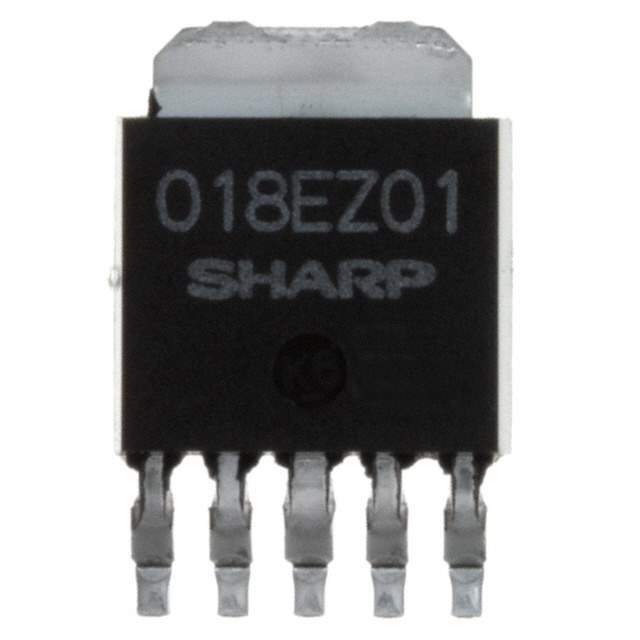

PQ018EZ01ZZ Real Image
Same model may have multiple batches, images only for reference.

PQ018EZ01ZZ

Part No PQ018EZ01ZZ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 1A SC63
Datasheet
PQ018EZ01ZZ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.8V
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026835-PQ018EZ01ZZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ018EZ01ZZ CAD Model

Description

The Sharp Microelectronics 026835-PQ018EZ01ZZ is a positive fixed voltage regulator with an output voltage of 1.8V and an output current of 1A.

  • Feature: Enable control feature
  • Dropout Voltage (typical): 0.2V @ 500mA
  • Component Family: Integrated Circuits
  • Package: Tube/rail
  • Mounting Style: Surface-mount device (SMD)
  • Maximum Input Voltage: 10V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Protection Features: Over-current and over-temperature
  • ECCN: EAR99
  • Status: Obsolete (EOL)
  • Temperature Range: -40°C to 85°C
  • Package: SC-63
