Same model may have multiple batches, images only for reference.

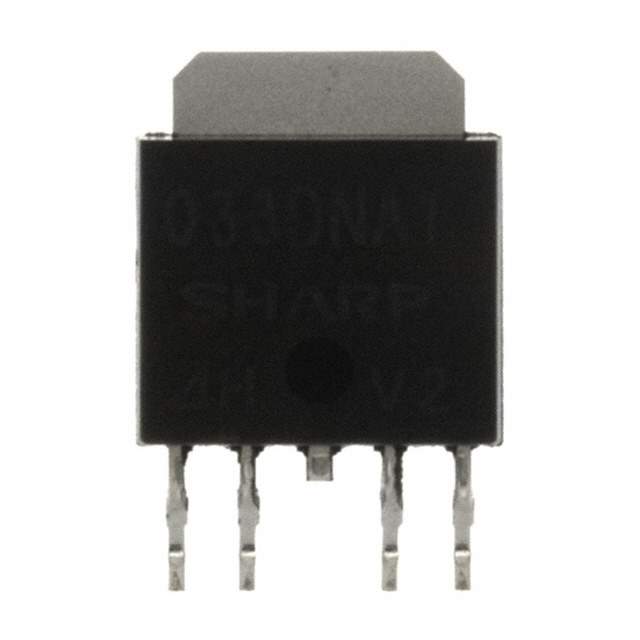

PQ033DNA1ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ033DNA1ZPH

Part No PQ033DNA1ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1A SC63
Datasheet
PQ033DNA1ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 104125-PQ033DNA1ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ033DNA1ZPH CAD Model

Description

The Sharp Microelectronics PQ033DNA1ZPH is a positive fixed regulator with a dropout voltage of 0.2V @ 500mA.

  • Maximum Input Voltage: 24V
  • Nominal Output Voltage: 3.3V
  • Output Current: 1A
  • Enable Control: Yes
  • Package: SC-63
  • Protection Features: Over current and over temperature
  • Operating Temperature Range: -40°C to 85°C
  • PSRR: 60dB (120Hz)
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
