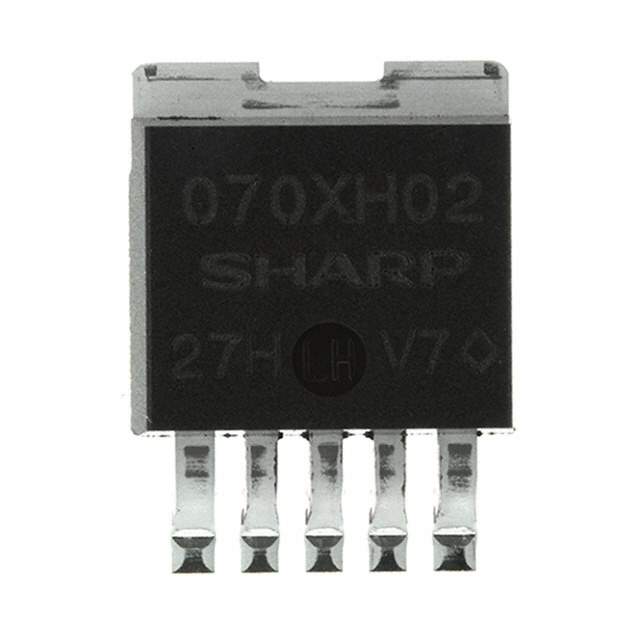

PQ070XH02ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ070XH02ZPH

Part No PQ070XH02ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 2A TO263
Datasheet
PQ070XH02ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 7V
Dropout Voltage-Max 0.5V @ 2A
Output Current 2A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 7 V
Mounting SMD (SMT)
Case / Package TO-263
Win Source Part Number 117181-PQ070XH02ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ070XH02ZPH CAD Model

Description

The Sharp Microelectronics PQ070XH02ZPH is a positive adjustable regulator topology integrated circuit (IC) with a single regulator and adjustable output type.

  • Maximum Input Voltage: 10V
  • Nominal Output Voltage: 1.5V
  • Maximum Output Voltage: 7V
  • Dropout Voltage-Max: 0.5V @ 2A
  • Operating Supply Current: 2mA
  • PSRR: 60dB @ 120Hz
  • Protection: over current and over temperature
  • Case/Package: TO-263
  • Popularity: medium
  • Supply and Demand Status: balanced
