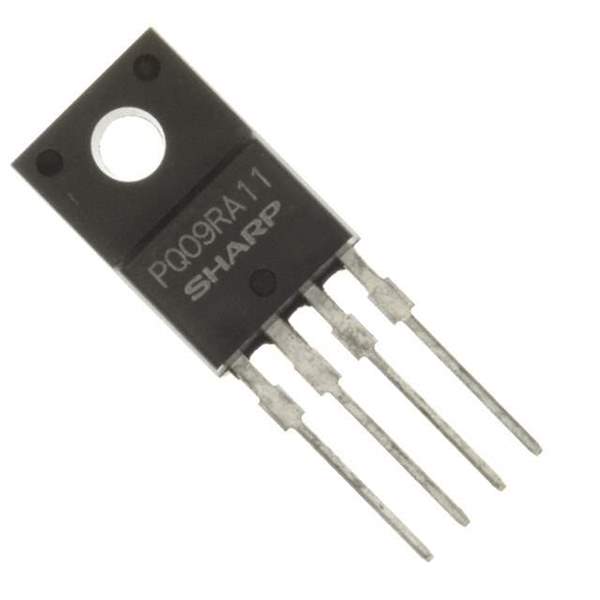

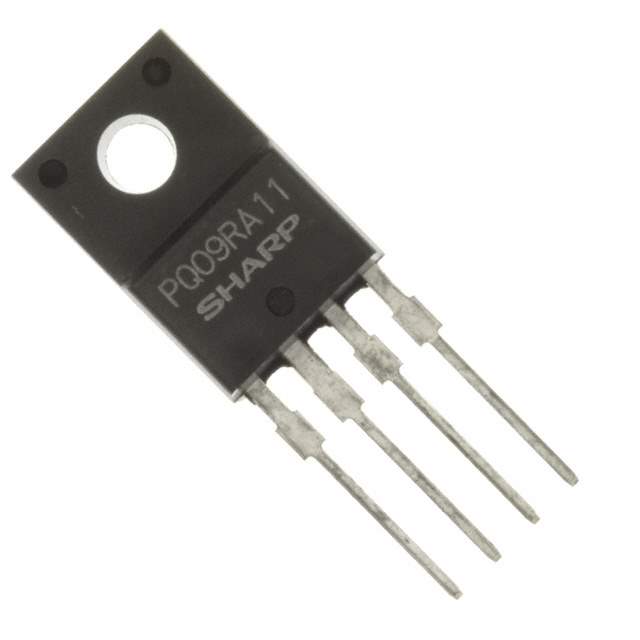

PQ09RA11 Real Image
Same model may have multiple batches, images only for reference.

PQ09RA11

Part No PQ09RA11
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1A TO220-4
Datasheet
PQ09RA11 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 9V
Output Current 1A
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 045906-PQ09RA11
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ09RA11 CAD Model

Description

This Sharp Microelectronics product is a positive fixed regulator with 1 output type and an output current of 1A.

  • Output Voltage: Fixed @ 9V
  • Control Feature: Enable
  • Package: TO-220-4
  • Maximum Input Voltage: 35V
  • Nominal Output Voltage: 9V
  • Operating Temperature Range: -20°C to 80°C
  • Protection Feature: Over-current and over-temperature
  • Supply and Demand Status: Limited due to it being obsolete (EOL)
