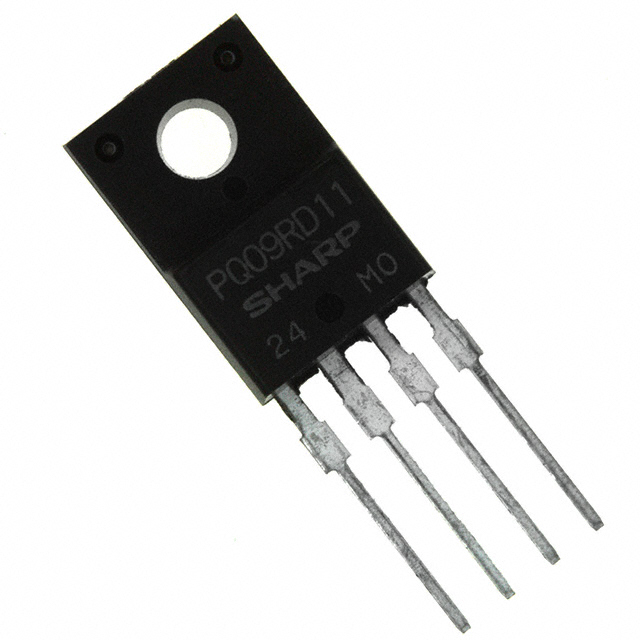

PQ09RD11 Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ09RD11

Part No PQ09RD11
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1A TO220-4
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 9V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 026841-PQ09RD11
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PQ09RD11 CAD Model

Description

This integrated circuit is manufactured by Sharp Microelectronics and has a part number of 026841-PQ09RD11. It is a positive fixed regulator with one regulator and an output current of 1A.

  • Output Voltage: 9V
  • Control Feature: Enable
  • Mounting: Through-hole technology
  • Package: TO-220-4
  • Maximum Input Voltage: 20V
  • Nominal Output Voltage (Min/Fixed): 9V
  • Dropout Voltage-Max: 0.5V @ 500mA
  • Operating Supply Current: 10mA
  • PSRR: 55dB (120Hz)
  • Protection Features: Over current and over temperature
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Packaging: Tube/rail
  • Package Size: 50
