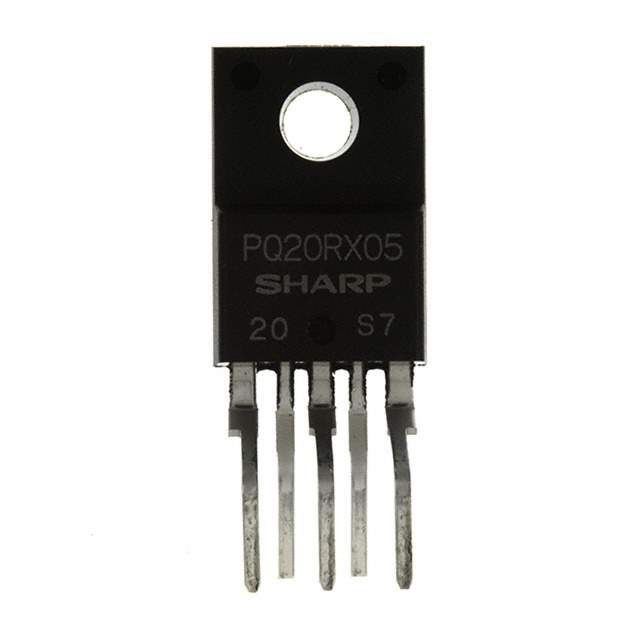

PQ20RX05 Real Image
Same model may have multiple batches, images only for reference.

PQ20RX05

Part No PQ20RX05
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description Variable Output Type Low Power-Loss Voltage Regulator with ON/OFF Control Function
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 24V
Output Voltage 3V
Output Voltage MAX 20V
Voltage Dropout (Maximum) 0.5V @ 300mA
Output Current 500mA
Operating Supply Current 8mA
PSRR 45dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5
Win Source Part Number 1239294-PQ20RX05
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Family Name PQ20RX05
Introduction Date August 02, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PQ20RX05 CAD Model

Description

The PQ20RX05 is an electronic component manufactured by Sharp Microelectronics.

  • Category: Integrated Circuits (ICs)
  • Package: TO-220-5
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
  • EOL Date: Estimated EOL Date
  • Manufacturer Homepage: sharp-world.com/
