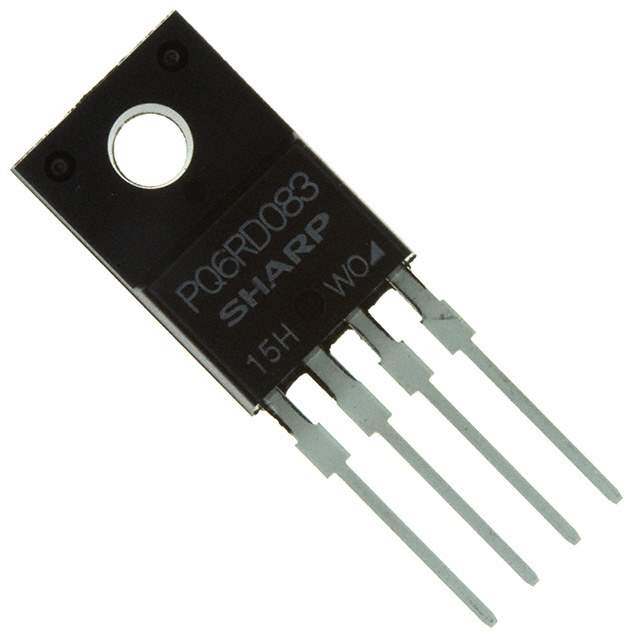

PQ6RD083J00H Real Image
Same model may have multiple batches, images only for reference.

PQ6RD083J00H

Part No PQ6RD083J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 6.3V 0.8A TO220-4
Datasheet
PQ6RD083J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 20V
Output Voltage 6.3V
Voltage Dropout (Maximum) 0.5V @ 500mA
Output Current 800mA
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package TO-220-4
Manufacturer Package TO-220-4
Manufacturer Homepage sharp-world.com
Win Source Part Number 740826-PQ6RD083J00H
Popularity Medium
Supply and Demand Status Limited
Family Name PQ6RD083
Introduction Date January 28, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PQ6RD083J00H CAD Model

Description

The Sharp Microelectronics PQ6RD083J00H is a through-hole voltage regulator that is ideal for various integrated circuit applications.

  • Series: PQ6RD083
  • Output Configuration: Fixed
  • Output Type: Positive
  • Voltage Input Maximum: 20V
  • Output Voltage: 6.3V
  • Output Current: 800mA
  • Operating Supply Current: 10mA
  • Voltage Dropout (Maximum): 0.5V @ 500mA
  • Protection Features: Over Current and Over Temperature
  • Temperature Range for Operating: -20°C to 80°C
  • Package: TO-220-4
  • Status: Obsolete (EOL)
