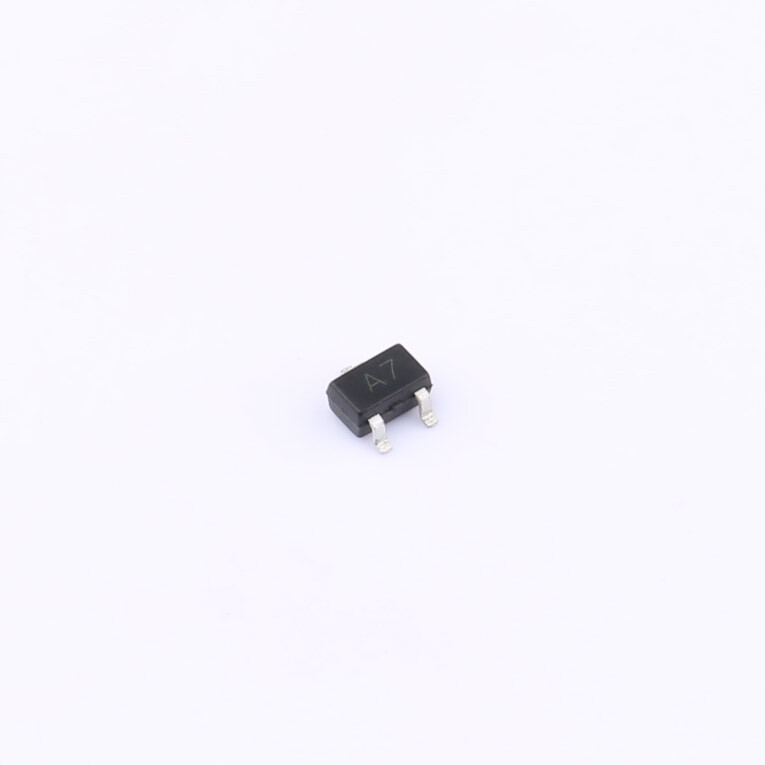

Same model may have multiple batches, images only for reference.
BAV99W ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BAV99W

Part No BAV99W
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description 75V 1 pair in series 1.25V@150mA 4ns 150mA SOT-323
Datasheet
BAV99W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329866-BAV99W
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 2.5µA @ 70V
Operating Temperature - Junction -55°C ~ 150°C
Grade -
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) (per Diode) 150mA
Current - Reverse Leakage @ Vr 2.5µA @ 75V
Operating Temperature - Junction 150°C
Package Tape & Reel (TR)
Current - Reverse Leakage @ Vr 1µA @ 75V
Ultra Librarian 3D Model Ultra Librarian BAV99W CAD Model
