MBRF20100CT ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

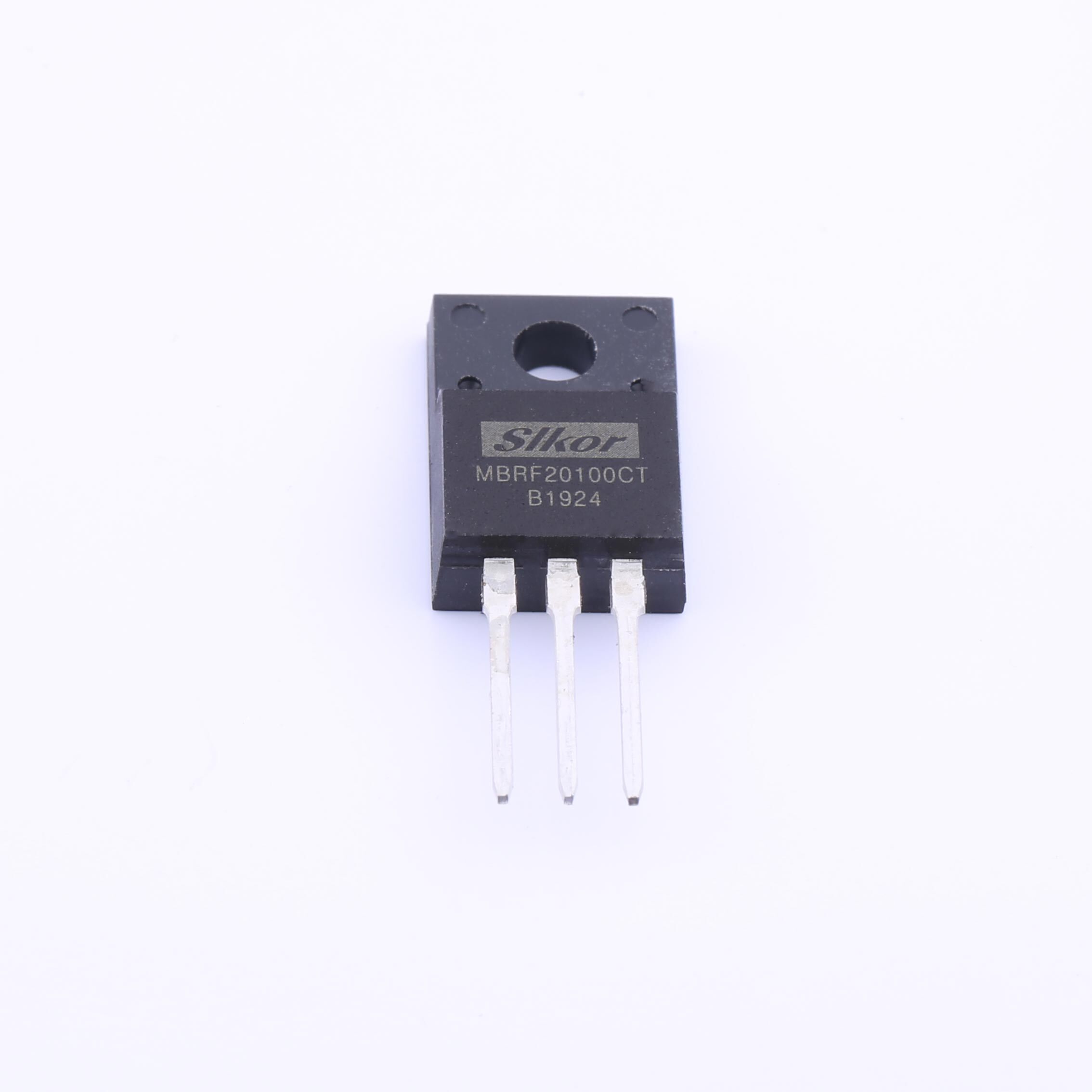

MBRF20100CT

Part No MBRF20100CT
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Schottky Diodes
Description 1 pair of common cathodes 100V 20A 800mV@10A TO-220F
Datasheet
MBRF20100CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329827-MBRF20100CT
Package Box
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 950mV @ 10A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 200V
Operating Temperature - Junction -55°C ~ 150°C
Grade -
Mounting Type Through Hole
Package / Case TO-220AB
Supplier Device Package ITO-220AB
Package Tube
Diode Configuration 1 Pair Common Cathode
Voltage - Forward (Vf) (Max) @ If 800mV @ 5A
Current - Reverse Leakage @ Vr 1mA @ 100V
Package / Case TO-220-3 Full Pack, Isolated Tab
Series *
Product Status Obsolete
Ultra Librarian 3D Model Ultra Librarian MBRF20100CT CAD Model
