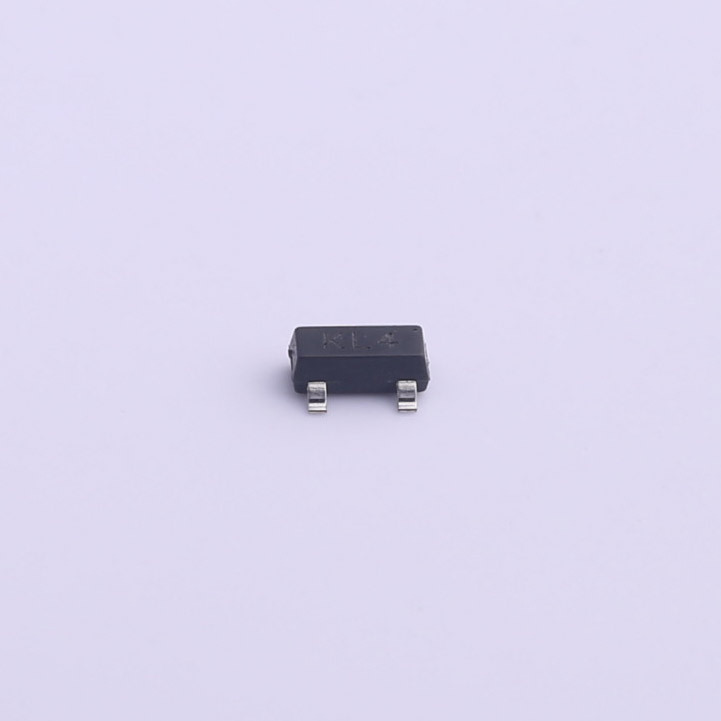

BAT54S

Name: BAT54S
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329819
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAT54S
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Schottky Diodes
Description	30V 1V@100mA 200mA SOT-23
Datasheet	BAT54S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329819-BAT54S
Package	Tape & Reel (TR)
Product Status	Active
Diode Configuration	1 Pair Series Connection
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	2µA @ 25V
Operating Temperature - Junction	125°C
Grade	-
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Obsolete
Current - Average Rectified (Io) (per Diode)	200mA
Voltage - Forward (Vf) (Max) @ If	800mV @ 100mA
Operating Temperature - Junction	-55°C ~ 150°C
Supplier Device Package	SOT-23-3
Current - Average Rectified (Io) (per Diode)	100mA
Operating Temperature - Junction	125°C (Max)
Operating Temperature - Junction	-55°C ~ 125°C
Operating Temperature - Junction	-65°C ~ 150°C
Package	Cut Tape (CT)
