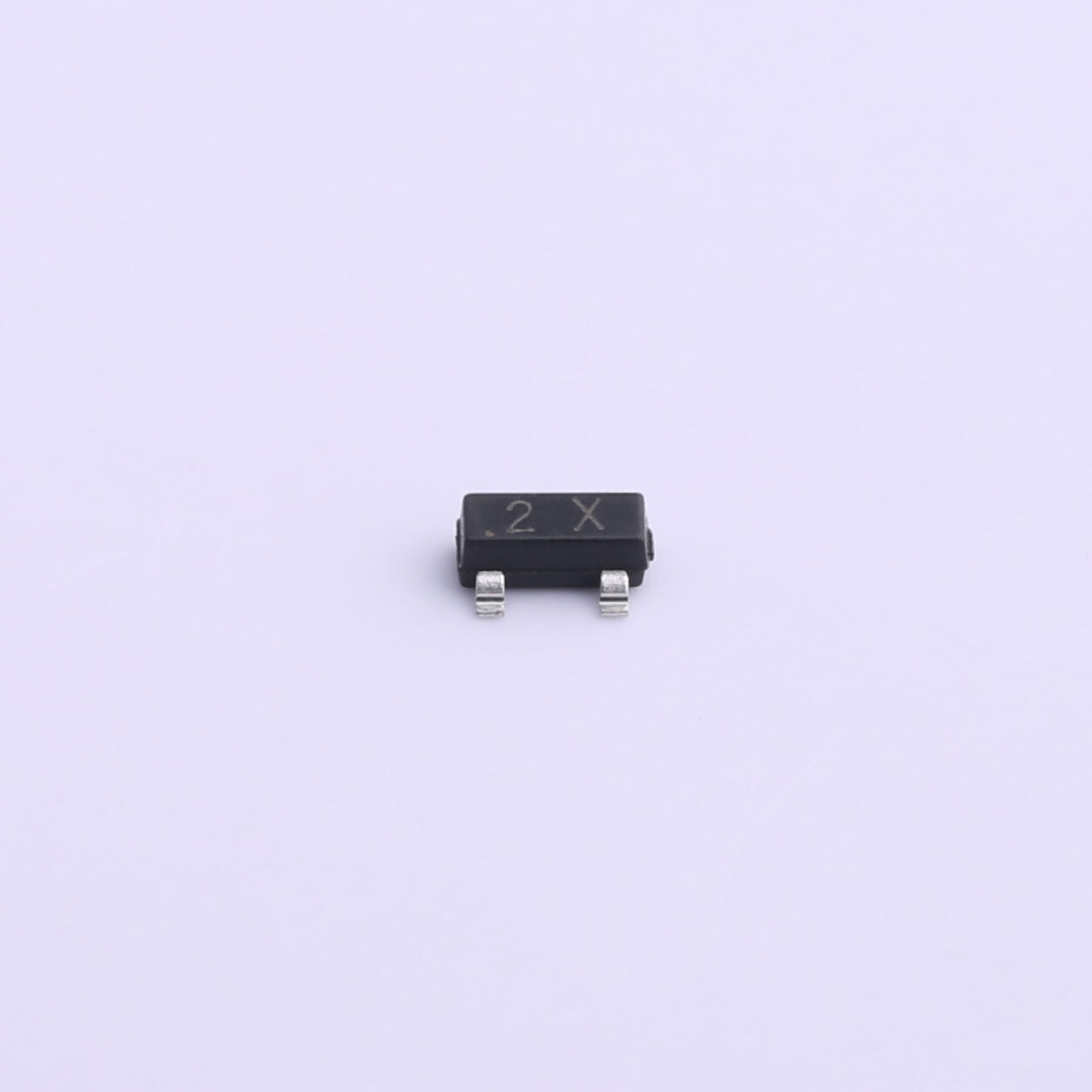

Same model may have multiple batches, images only for reference.
MMBT4401 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MMBT4401

Part No MMBT4401
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Transistors (BJT) - Single
Description 40V 600mA NPN SOT-23
Datasheet
MMBT4401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329748-MMBT4401
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 750mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 1V
Power - Max 350mW
Frequency - Transition 250MHz
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Obsolete
Vce Saturation (Max) @ Ib, Ic 400mV @ 15mA, 150mA
DC Current Gain (hFE) (Min) @ Ic, Vce 300 @ 150mA, 1V
Power - Max 300mW
Supplier Device Package SOT-23-3
Package Tape & Reel (TR)
Current - Collector Cutoff (Max) 0.1µA (ICBO)
Supplier Device Package SOT-23-3L
Operating Temperature 150°C (TJ)
Package Cut Tape (CT)
Vce Saturation (Max) @ Ib, Ic 1.2V @ 50mA, 500mA
Ultra Librarian 3D Model Ultra Librarian MMBT4401 CAD Model
