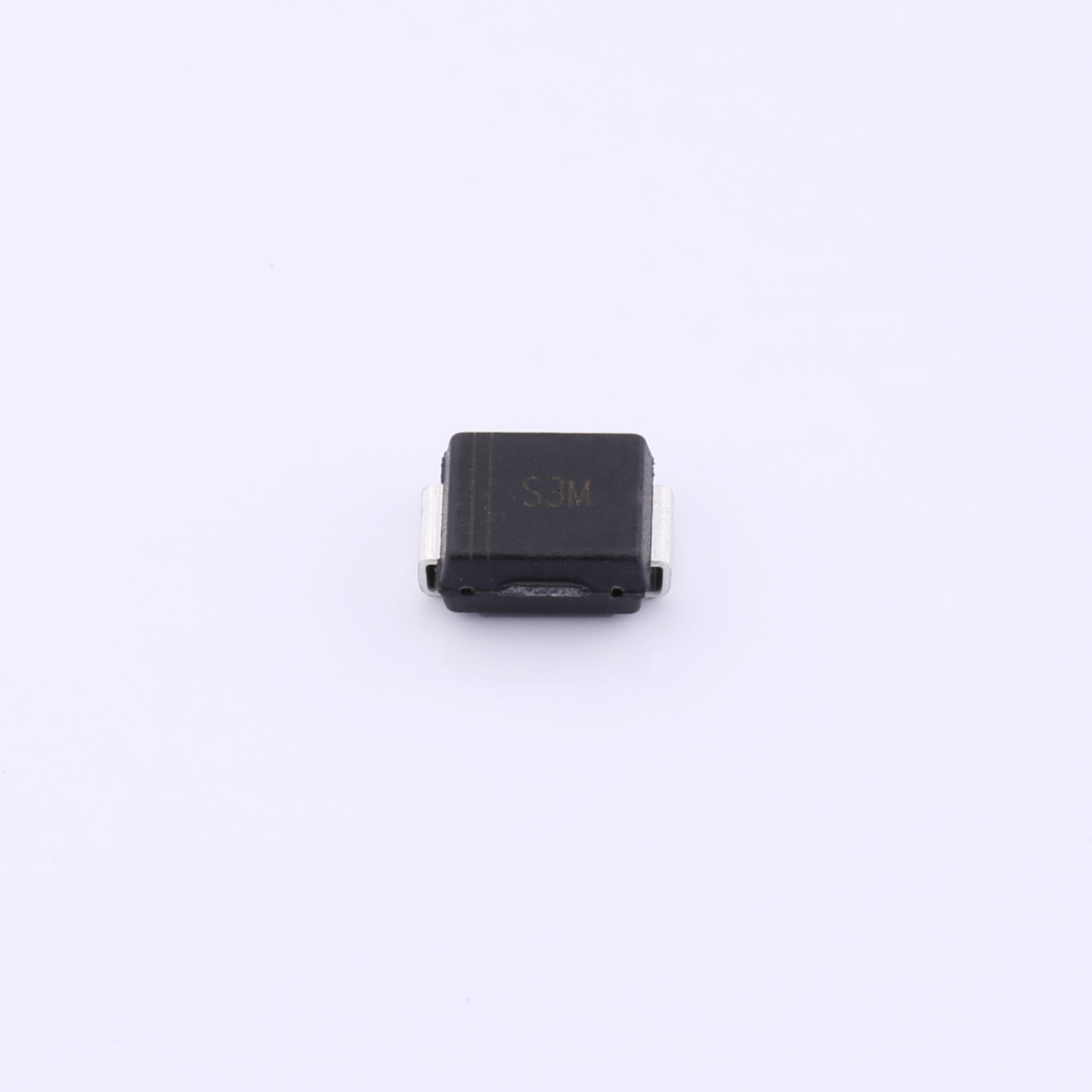

Same model may have multiple batches, images only for reference.
S3MB ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

S3MB

Part No S3MB
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description Independent Type 3A 1kV 1.1V@3A SMB
Datasheet
S3MB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329795-S3MB
Package Tape & Reel (TR)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 3A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5µA @ 1000V
Capacitance @ Vr, F 35pF @ 4V, 1MHz
Grade -
Mounting Type Surface Mount
Package / Case SOD-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -55°C ~ 150°C
Package Tape & Reel (TR);Cut Tape (CT)
Voltage - Forward (Vf) (Max) @ If 1.15V @ 3A
Reverse Recovery Time (trr) 1.5µs
Current - Reverse Leakage @ Vr 10µA @ 1000V
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Operating Temperature - Junction -65°C ~ 175°C
Ultra Librarian 3D Model Ultra Librarian S3MB CAD Model
