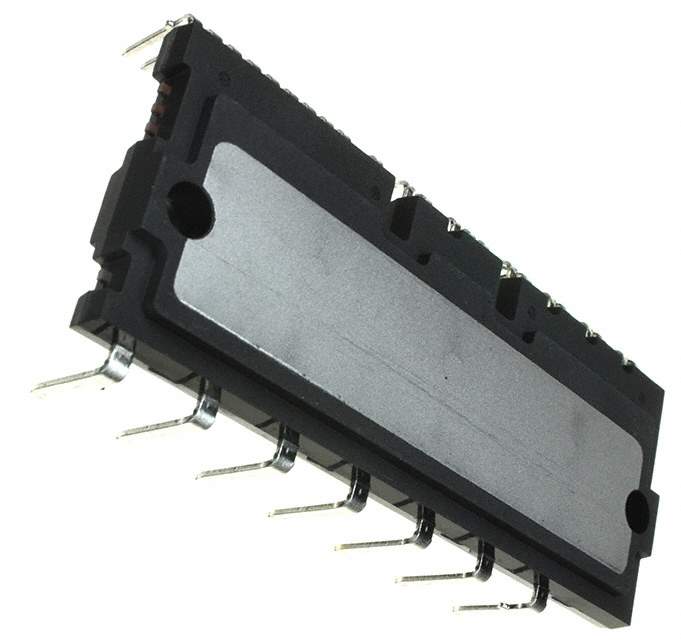

PS22A74 Real Image
Same model may have multiple batches, images only for reference.

PS22A74

Part No PS22A74
Manufacturer Powerex Inc.
Catalog Power Drivers - Modules
Description MOD IPM 1200V 15A LARGE DIP / Power Driver Module IGBT 3 Phase 1.2 kV 15 A 42-PowerDip Module (1.404", 35.67mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Powerex Inc.
Series DIPIPM™
Package Bulk
Type IGBT
Configuration 3 Phase
Current 15 A
Voltage 1.2 kV
Voltage - Isolation 2500VDC
Mounting Type Through Hole
Package / Case 42-PowerDip Module (1.404", 35.67mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337571-PS22A74
Ultra Librarian 3D Model Ultra Librarian PS22A74 CAD Model

Description

PS22A74 is a power driver module from Powerex Inc.

  • Manufacturer: Powerex Inc.
  • Product: PS22A74
  • Series: DIPIPM™
  • Configuration: 3 Phase
  • Voltage Rating: 1.2 kV
  • Current Rating: 15 A
  • Package: 42-PowerDip Module (1.404", 35.67mm)
  • Voltage Isolation: 2500VDC
  • Mounting Type: Through Hole
  • ECCN: EAR99
