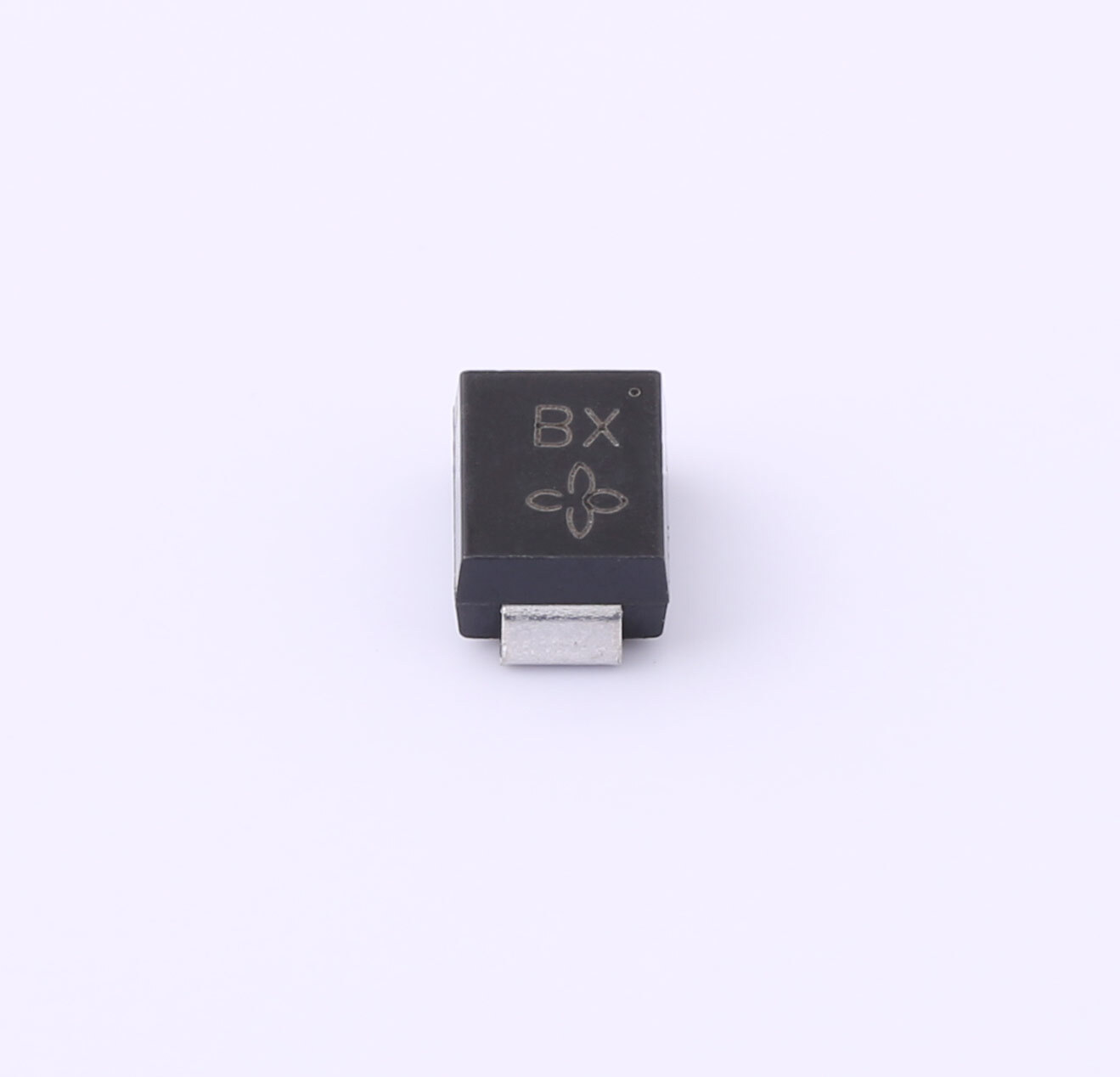

Same model may have multiple batches, images only for reference.
SMBJ22CA ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ22CA

Part No SMBJ22CA
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 24.4V 35.5V 16.9A 22V 600W SMB
Datasheet
SMBJ22CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329926-SMBJ22CA
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 16.9A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Bidirectional Channels 2
Power Line Protection Yes
Operating Temperature -55°C ~ 150°C
Supplier Device Package DO-214AA (SMBJ)
Operating Temperature -65°C ~ 150°C (TJ)
Series *
Package Tape & Reel (TR)
Voltage - Breakdown (Min) 22.4V
Applications Telecom
Operating Temperature -55°C ~ 175°C (TJ)
Package Strip
Package / Case DO-214AA (SMB)
Ultra Librarian 3D Model Ultra Librarian SMBJ22CA CAD Model
