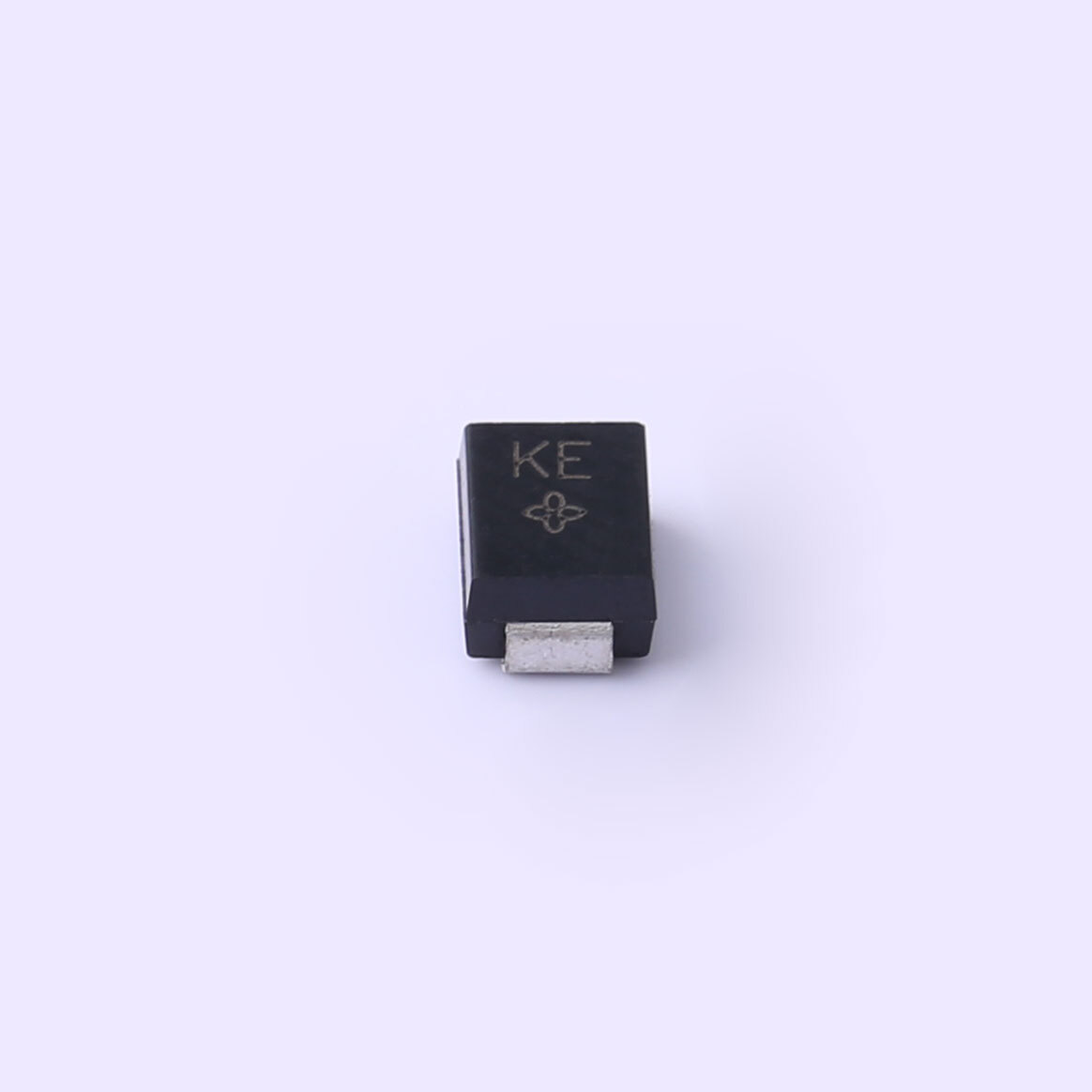

SMBJ5.0CA

Part No SMBJ5.0CA
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 65.2A 9.2V 6.4V 5V DO-214AA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329941-SMBJ5.0CA
Package Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6.4V
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 65.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Package Tape & Reel (TR);Cut Tape (CT)
Current - Peak Pulse (10/1000µs) 65.22A
Supplier Device Package SMB
Package Tape & Reel (TR)
Applications Telecom
Operating Temperature -55°C ~ 175°C (TJ)
Current - Peak Pulse (10/1000µs) 68A
Current - Peak Pulse (10/1000µs) 65.3A
Operating Temperature -65°C ~ 150°C (TJ)
Package Strip
Operating Temperature -55°C ~ 150°C
Supplier Device Package DO-214AA (SMBJ)
Ultra Librarian 3D Model Ultra Librarian SMBJ5.0CA CAD Model

Description

SMBJ5.0CA from ShenZhen SlkorMicro Semicon Co. Ltd is a TVS diode intended for circuit protection in designs exposed to voltage transients, surge events, and ESD-related stress. Components in this category are commonly selected to help protect power rails, I/O interfaces, consumer electronics, industrial controls, communication ports, and embedded systems where transient suppression is important for long-term reliability. For engineers, this part is positioned as a practical protection device for safeguarding sensitive downstream components and reducing field-failure risk in compact electronic designs. Because the lifecycle status for SMBJ5.0CA is currently information not available, buyers should confirm current production status with the manufacturer or an authorized source before locking it into new designs or long-term service programs. RoHS compliance information is also information not available based on the provided input, so compliance teams and design engineers should verify the latest datasheet, declaration, or manufacturer statement before procurement.
