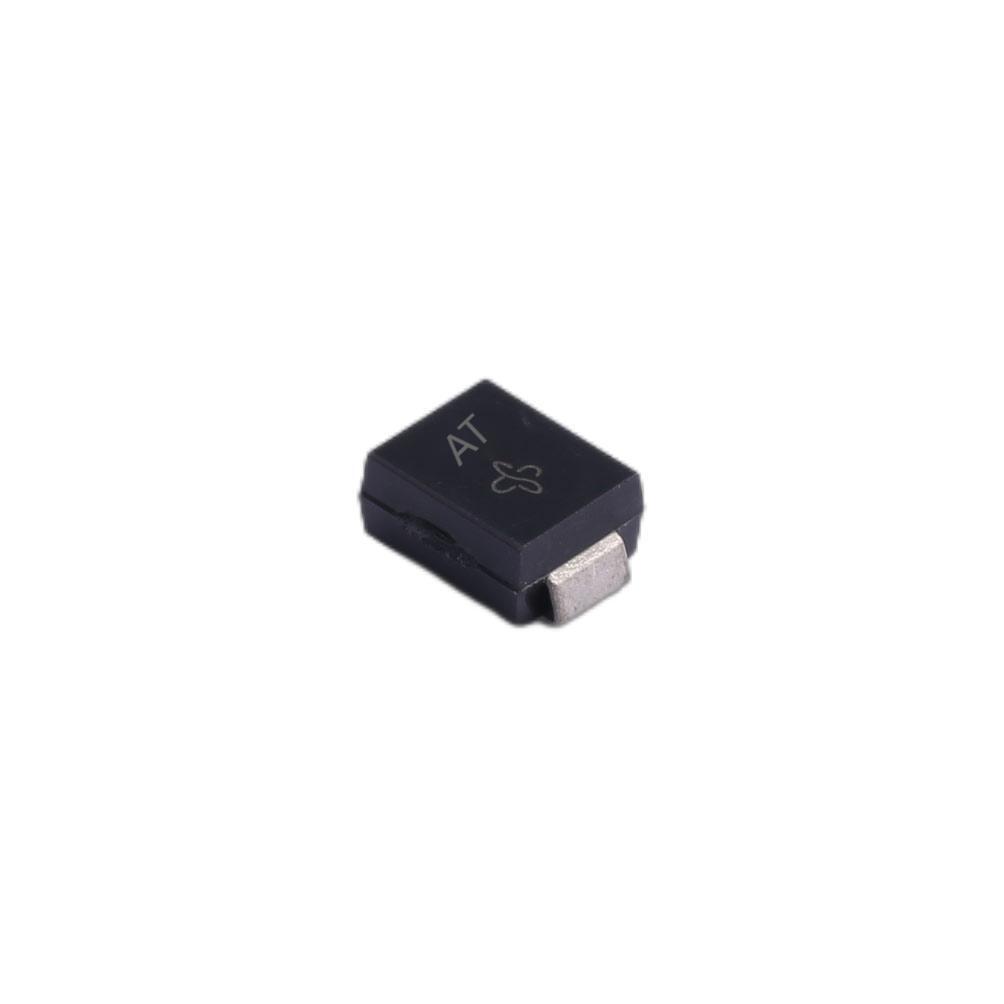

Same model may have multiple batches, images only for reference.

SMBJ8.5CA

Name: SMBJ8.5CA
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329950
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ8.5CA
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	TVS - Diodes
Description	SMB
Datasheet	SMBJ8.5CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329950-SMBJ8.5CA
Package	Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	8.5V
Voltage - Breakdown (Min)	9.44V
Voltage - Clamping (Max) @ Ipp	14.4V
Current - Peak Pulse (10/1000µs)	41.7A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Operating Temperature	-65°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Package	Tape & Reel (TR)
Current - Peak Pulse (10/1000µs)	43A
Operating Temperature	-55°C ~ 150°C (TJ)
Supplier Device Package	DO-214AA (SMB)
Package	Tape & Reel (TR);Cut Tape (CT)
Supplier Device Package	DO-214AA (SMBJ)
Voltage - Breakdown (Min)	9.4V
Applications	Telecom
Operating Temperature	-55°C ~ 175°C (TJ)
Package	Strip
Current - Peak Pulse (10/1000µs)	41.67A
Operating Temperature	-55°C ~ 150°C
Package / Case	DO-214AA (SMB)
Ultra Librarian 3D Model	Ultra Librarian SMBJ8.5CA CAD Model
