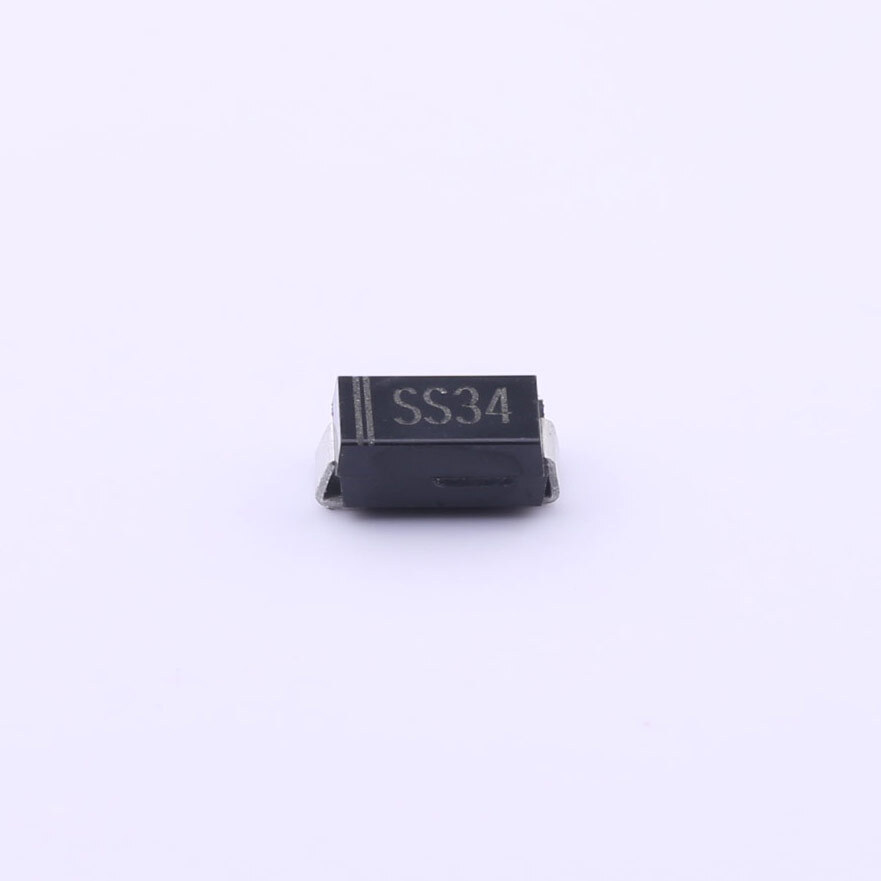

Same model may have multiple batches, images only for reference.
SS34 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SS34

Part No SS34
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Schottky Diodes
Description 40V 500mV@3A 3A SMA(DO-214AC)
Datasheet
SS34 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329846-SS34
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500µA @ 40V
Grade -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 125°C
Package Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If 550mV @ 3A
Capacitance @ Vr, F 250pF @ 4V, 1MHz
Supplier Device Package SMA
Package Tape & Reel (TR);Cut Tape (CT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Product Status Not For New Designs
Operating Temperature - Junction -55°C ~ 150°C
Ultra Librarian 3D Model Ultra Librarian SS34 CAD Model
