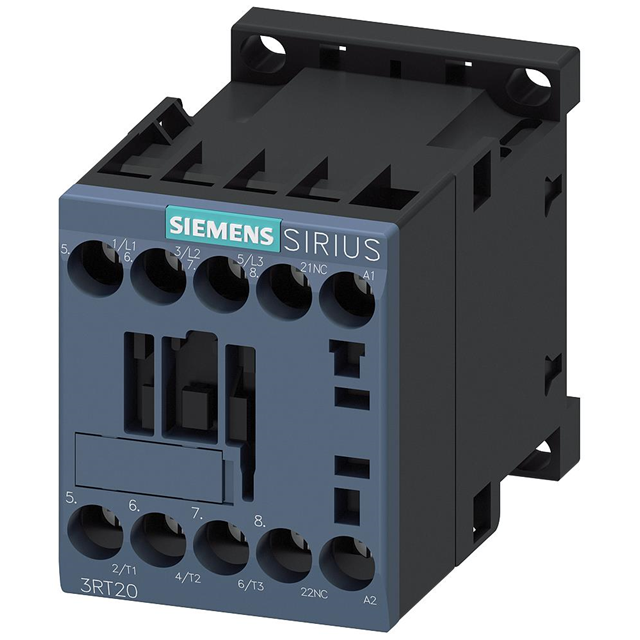

3RT20161AF02 Real Image
Same model may have multiple batches, images only for reference.

3RT20161AF02

Part No 3RT20161AF02
Manufacturer Siemens
Catalog Industrial Equipment
Description CONTACTOR S00 9A 110VAC 1NC SCRW  /
Datasheet
3RT20161AF02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr Siemens
Series 3RT2
Package Bulk
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 110VAC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 9 A
Switching Voltage 690VAC - Max
Features Auxiliary Contacts
Termination Style Screw Terminal
Temperature Range - Operating -25°C ~ 60°C
Must Operate Voltage 93.5 VAC
Operate Time 35 ms
Release Time 14 ms
Coil Power 27VA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0065
Other Names 1820892,3RT2016-1AF02,3473-3RT20161AF02
Standard Package 1
Win Source Part Number 1020396-3RT20161AF02
Ultra Librarian 3D Model Ultra Librarian 3RT20161AF02 CAD Model

Description

The Siemens 3RT2 series contactor is a reliable electromechanical relay that features auxiliary contacts.

  • Contact Form: 3PST-NO (3 Form A)
  • Contact Rating: 9 A
  • Coil Voltage: 110VAC
  • Switching Voltage: 690VAC - Max
  • Mounting Type: Chassis Mount or DIN Rail
  • Temperature Range: -25°C to 60°C
  • ECCN: EAR99
  • Win Source Part Number: 1020396-3RT20161AF02
