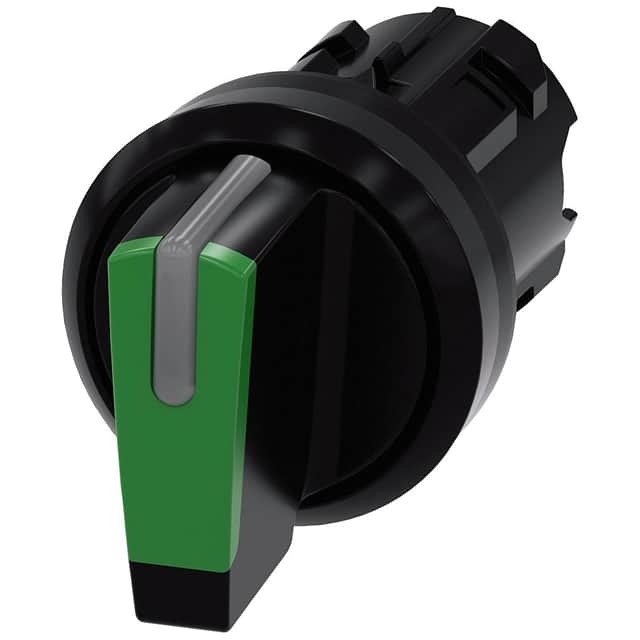

3SU10022BP400AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10022BP400AA0

Part No 3SU10022BP400AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description SEL SW, 3POS, MOM/MTND,SHORT HAN
Datasheet
3SU10022BP400AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s)
Type Maintained, Momentary
Illumination Non-Illuminated
Actuator Type Selector
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1002
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1036348-3SU10022BP400AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10022BP400AA0 CAD Model

Description

The 3SU1 series Selector Switch is a versatile electronic component designed for use in various applications by Siemens.

  • Type: Maintained and Momentary
  • Package: 1 piece, box package
  • Panel Cutout Dimensions: 22.3mm
  • Actuator Type: Selector
  • Illumination: Non-illuminated
  • Requirements: Contact block(s)
  • Compatible Series: Siemens 22mm
  • ECCN: EAR99
  • MSL Level: Not applicable
  • REACH: Unaffected
  • HTSUS Code: 8538.90.8180
  • Base Product Number: 3SU1002
  • Product Status: Active
