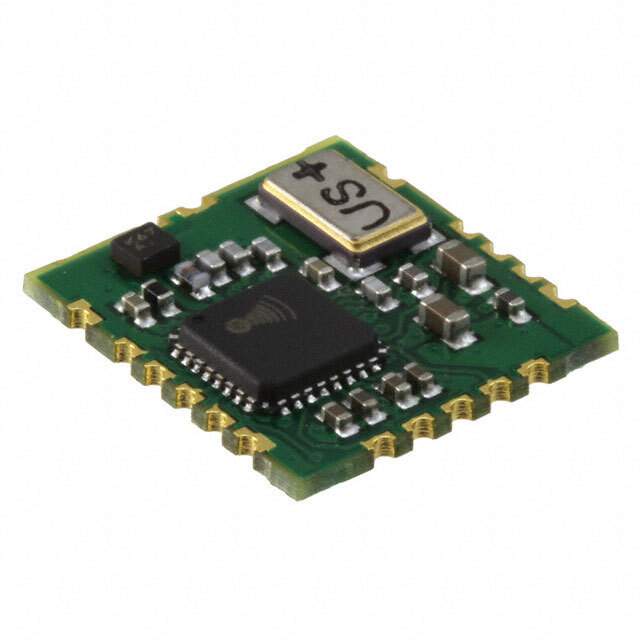

ZM3102AU-CME1R Real Image ZM3102AU-CME1R real image
Same model may have multiple batches, images only for reference.
ZM3102AU-CME1R Real Image ZM3102AU-CME1R real image
ZM3102AU-CME1R Real Image ZM3102AU-CME1R real image
Same model may have multiple batches, images only for reference.

ZM3102AU-CME1R

Part No ZM3102AU-CME1R
Manufacturer Sigma Designs Inc.
Catalog RF Transceiver Modules
Description RF TXRX MODULE ISM
Datasheet
ZM3102AU-CME1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Sigma Designs Inc.
Packaging Reel - TR
RF Family/Standard General ISM
Protocol Z-Wave
Modulation FSK
Frequency 908MHz
Data Rate 40kbps
Power - Output -2dBm
Sensitivity -102dBm
Serial Interfaces SPI, UART
Antenna Type Not Included
Memory Size 32kB Flash, 2kB SRAM
Supply Voltage - Operating 2.1 V to 3.6 V
Current - Receiving 23mA
Current - Transmitting 24mA to 36mA
Mounting SMD (SMT)
Temperature Range - Operating -15°C to 85°C
Dimension Module
Win Source Part Number 1120104-ZM3102AU-CME1R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZM3102AU-CME1R CAD Model

Description

The Sigma Designs Inc. ZM3102AU-CME1R is a highly popular component that is commonly used in RF/IF and RFID applications.

  • Operating Temperature Range: -15°C to 85°C
  • Supply Voltage: 2.1 V to 3.6 V
  • Frequency: 908MHz
  • Data Rate: 40kbps
  • Sensitivity: -102dBm
