Same model may have multiple batches, images only for reference.

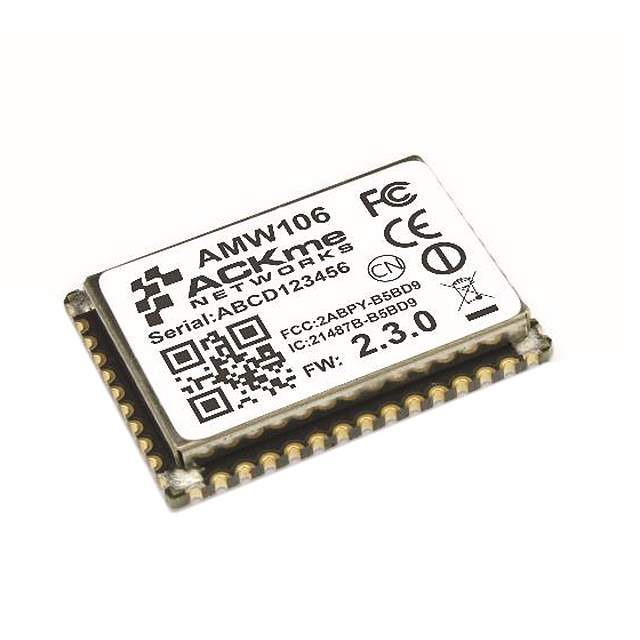

AMW106-3.4.0R Real Image
Same model may have multiple batches, images only for reference.

AMW106-3.4.0R

Part No AMW106-3.4.0R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI TRACE ANT SMD / WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Datasheet
AMW106-3.4.0R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Package Tape & Reel
Product Status Obsolete
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz
Data Rate 65Mbps
Power - Output 18dBm
Sensitivity -94dBm
Serial Interfaces SPI, UART
Antenna Type Integrated, Trace
Utilized IC / Part BCM43362
Memory Size 1.5MB Flash, 128kB RAM
Voltage - Supply 3.3V
Current - Receiving 5.7mA
Current - Transmitting 11.4mA
Mounting Type Surface Mount
Temperature Range - Operating -30°C ~ 85°C
Package / Case 52-SMD Module
Base Product Number AMW106
Standard Package 900
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1337068-AMW106-3.4.0R
Ultra Librarian 3D Model Ultra Librarian AMW106-3.4.0R CAD Model

Description

The Silicon Labs AMW106-3.4.0R is an RF transceiver module designed for WiFi applications. The manufacturer of this product is Silicon Labs.

  • Applications: WiFi
  • Frequency: 2.4GHz
  • Data Rate: 65Mbps
  • Sensitivity: -94dBm
  • Power - Output: 18dBm
  • Mounting Type: Surface Mount
  • Package / Case: 52-SMD Module
  • Standard Package: 900
