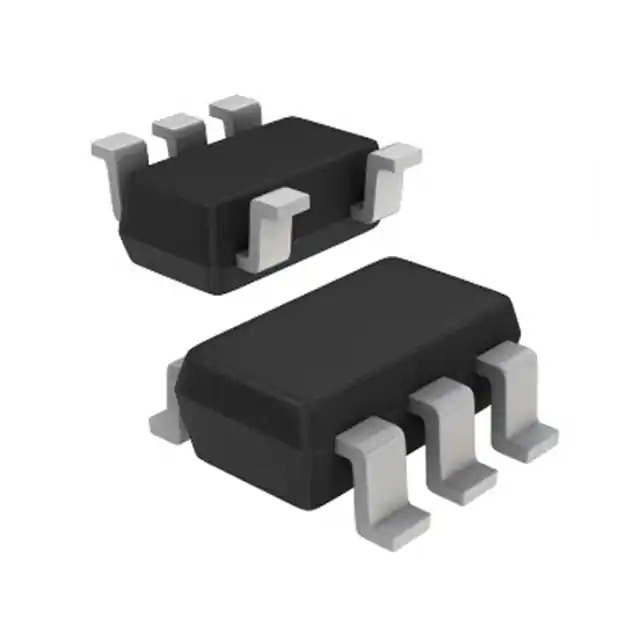

Same model may have multiple batches, images only for reference.
SI7210-B-01-IV Silicon Labs
Same model may have multiple batches, images only for reference.

SI7210-B-01-IV

Part No SI7210-B-01-IV
Manufacturer Silicon Labs
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT I2C SOT23-5
Datasheet
SI7210-B-01-IV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Linear, Compass (ICs)
Mfr Silicon Labs
Series -
Package Strip
Product Status Active
Technology Hall Effect
Axis Single
Output Type I²C
Sensing Range ±20mT
Voltage - Supply 1.71V ~ 5.5V
Current - Supply (Max) 0.4µA (Typ)
Current - Output (Max) -
Resolution 13 b
Bandwidth 20kHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Features Programmable
Supplier Device Package SOT-23-5
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Base Product Number SI7210
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375646-SI7210-B-01-IV
Ultra Librarian 3D Model Ultra Librarian SI7210-B-01-IV CAD Model

Description

The SI7210-B-01-IV is a linear magnetic sensor IC manufactured by Silicon Labs.

  • Series: SI7210
  • Operating Temperature: -40°C to 125°C
  • Sensing Range: ±20mT
  • Programmable: Yes
  • Resolution: 13 bits
  • Mounting Type: Surface Mount
  • Package / Case: SC-74A, SOT-753
  • Voltage Supply: 1.71V to 5.5V
  • Maximum Supply Current: 0.4µA
  • Output Type: I²C
  • Bandwidth: 20kHz
