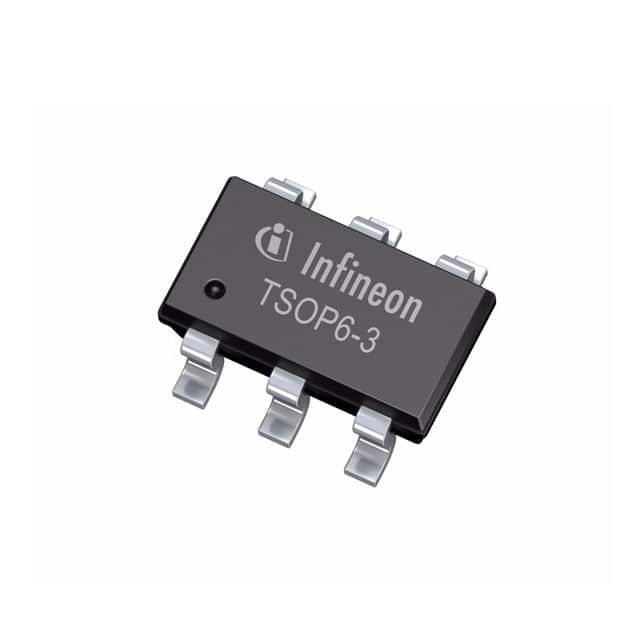

TLE49663KHTSA1

Part No TLE49663KHTSA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH SPEC PURP TSOP-6-6 / Digital Switch Special Purpose Open Collector Hall Effect PG-TSOP6-6
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Not For New Designs
Function Special Purpose
Technology Hall Effect
Voltage - Supply 2.7V ~ 24V
Current - Supply (Max) 7mA
Current - Output (Max) 50mA
Output Type Open Collector
Features Temperature Compensated
Mounting SMD (SMT)
Supplier Device Package PG-TSOP6-6
Package / Case SOT-23-6 Thin, TSOT-23-6
Base Product Number TLE49663
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP000835522,TLE49663KHTSA1DKR,INFINFTLE49663KHTSA1,TLE49663KHTSA1TR,2156-TLE49663KHTSA1,TLE49663KHTSA1CT
Standard Package 3,000
Win Source Part Number 1130617-TLE49663KHTSA1
Ultra Librarian 3D Model Ultra Librarian TLE49663KHTSA1 CAD Model

Description

The TLE49663KHTSA1 is a high-precision Hall effect sensor from Infineon Technologies. This sensor is designed for detecting the position or rotation of a target object by measuring the magnetic field. It's known for its robustness, accuracy, and suitability for automotive and industrial applications.

Applications

  • Automotive position sensing (e.g., camshaft, crankshaft)
  • Brushless DC motor control
  • Robotics
  • Industrial automation
  • Actuator control

Features

  • High sensitivity
  • Precise switching behavior
  • Robust against mechanical stress
  • Wide operating temperature range
  • Reverse voltage protection
  • Short-circuit protection

Benefits

  • Provides accurate and reliable position or rotation information.
  • Enables precise control of motors and actuators.
  • Operates reliably in harsh automotive and industrial environments.
  • Protects the sensor from damage due to voltage or current surges.
  • Improves system performance and efficiency.

Additional Details

The TLE49663KHTSA1 utilizes a Hall effect sensing element to detect magnetic fields. The sensor provides a digital output signal that switches state when the magnetic field exceeds a certain threshold. It has built-in protection features such as reverse voltage protection and short-circuit protection to ensure reliable operation. The sensor is designed to operate over a wide temperature range, making it suitable for use in extreme conditions. The exact specifications, including magnetic operating points and temperature characteristics, can be found in the product datasheet.

This Hall effect sensor is typically used in conjunction with a magnet that is attached to the rotating or moving object. The sensor detects the magnetic field generated by the magnet and provides a digital output signal that indicates the position or rotation of the object. The TLE49663KHTSA1 is commonly used in automotive applications such as camshaft and crankshaft position sensing, as well as in industrial applications such as motor control and robotics. Proper design of the magnetic circuit is crucial to ensure optimal performance of the sensor. Consult the datasheet for Infineon's recommendations on magnet selection and placement.
