Same model may have multiple batches, images only for reference.

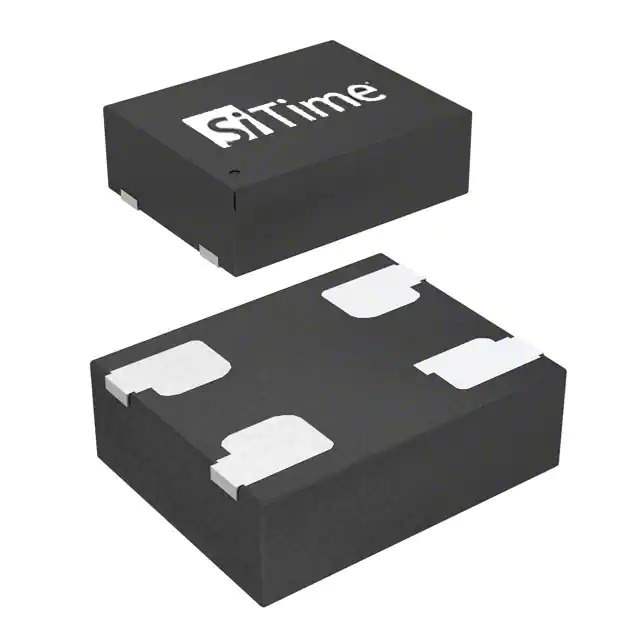

CS00094AC-J5-DCC-32.7707 Real Image
Same model may have multiple batches, images only for reference.

CS00094AC-J5-DCC-32.7707

Part No CS00094AC-J5-DCC-32.7707
Manufacturer SiTIME
Catalog Oscillators
Description 32.770KHZ, 20PPM, 1P5X0P8 WCSP
Datasheet
CS00094AC-J5-DCC-32.7707 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series CS00094
Package Tape & Reel
Product Status Discontinued
Base Resonator MEMS
Type TCXO
Frequency 32.7707 kHz
Output LVCMOS
Frequency Stability ±20ppm
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-UFBGA, CSPBGA
Size / Dimension 0.061" L x 0.033" W (1.54mm x 0.84mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number CS00094
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 867268-CS00094AC-J5-DCC-32.7707
Ultra Librarian 3D Model Ultra Librarian CS00094AC-J5-DCC-32.7707 CAD Model

Description

The SiTime 867268-CS00094AC-J5-DCC-32.7707 is a TCXO oscillator in the Crystals, Oscillators, Resonators - Oscillators category.

  • Category: Crystals, Oscillators, Resonators - Oscillators
  • Series: CS00094
  • Package: Tape & Reel
  • Size/Dimension: 0.061" L x 0.033" W (1.54mm x 0.84mm)
  • Max Seated Height: 0.024" (0.60mm)
  • Standard Package: 1 piece
  • Frequency: 32.7707 kHz
  • Output: LVCMOS
  • Frequency Stability: ±20ppm
  • Operating Temperature: -20°C to 70°C
  • Product Status: Discontinued
  • MSL Level: 1 (Unlimited)
