Same model may have multiple batches, images only for reference.

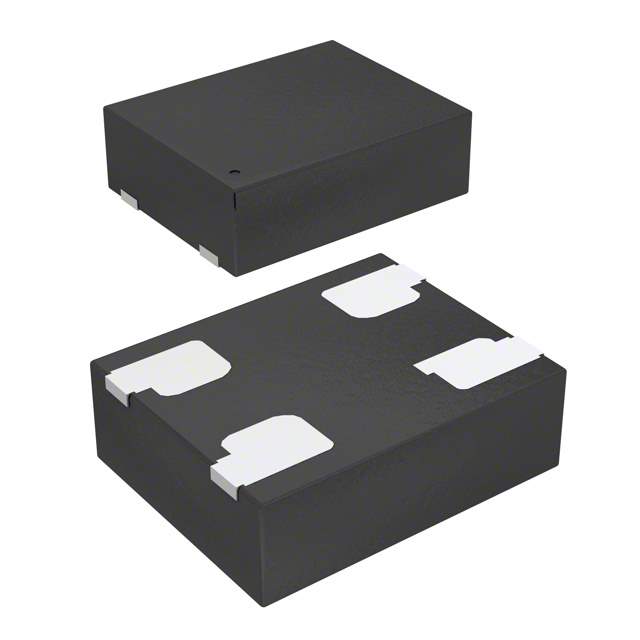

SIT1602AC-13-33S-25.000000 Real Image
Same model may have multiple batches, images only for reference.

SIT1602AC-13-33S-25.000000

Part No SIT1602AC-13-33S-25.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ LVCMOS / 25 MHz XO (Standard) LVCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
SIT1602AC-13-33S-25.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT1602
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 4.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1473-SIT1602AC-13-33S-25.000000G,1473-SIT1602AC-13-33S-25.000000G-ND,SIT1602AC-13-33S-25.000000S,1473-SIT1602AC-13-33S-25.000000D,1473-SIT1602AC-13-33S-25.000000E,SIT1602AC-13-33S-25.000000Y,SIT1602AC-13-33S-25.000000X,3417-SIT1602AC-13-33S-25.000000,SIT1602AC-13-33S-25.000000T,1473-SIT1602AC-13-33S-25.000000E-ND,1473-SIT1602AC-13-33S-25.000000D-ND,1473-SIT1602AC-13-33S-25.000000X,1473-SIT1602AC-13-33S-25.000000Y,1473-SIT1602AC-13-33S-25.000000T-ND,1473-SIT1602AC-13-33S-25.000000S,1473-SIT1602AC-13-33S-25.000000T,1473-SIT1602AC-13-33S-25.000000,1473-SIT1602AC-13-33S-25.000000X-ND,1473-SIT1602AC-13-33S-25.000000Y-ND,SIT1602AC-13-33S-25.000000E,SIT1602AC-13-33S-25.000000D,SIT1602AC-13-33S-25.000000G
Standard Package 1
Win Source Part Number 1196879-SIT1602AC-13-33S-25.000000
Ultra Librarian 3D Model Ultra Librarian SIT1602AC-13-33S-25.000000 CAD Model

Description

The SiT1602 series oscillators from SiTime are suitable for use in electronic circuits that require high frequency stability.

  • Frequency: 25 MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 4.5mA
  • Mounting: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -20°C to 70°C
  • REACH: Unaffected
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Resonator Technology: MEMS
