Same model may have multiple batches, images only for reference.

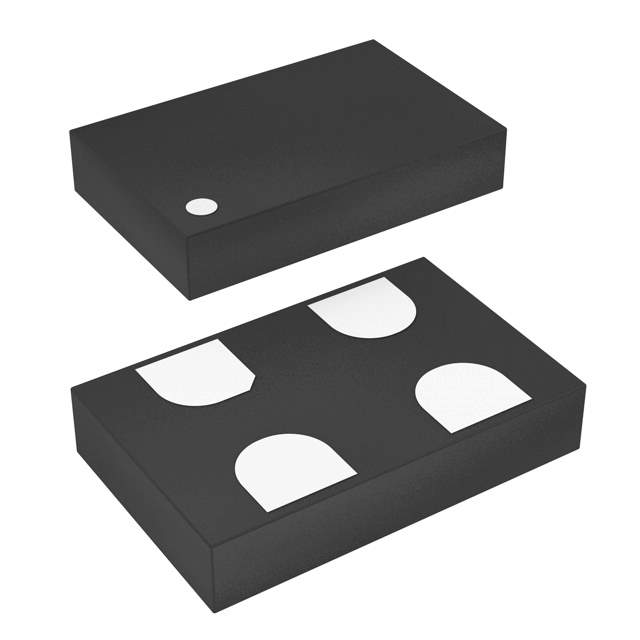

SIT8102AC-33-33E-25.00000 Real Image
Same model may have multiple batches, images only for reference.

SIT8102AC-33-33E-25.00000

Part No SIT8102AC-33-33E-25.00000
Manufacturer SiTIME
Catalog Oscillators
Description OSC MEMS 25.000MHZ SMD / Oscillator MEMS 25MHz ±50ppm (Stability) 15pF LVCMOS 55% 3.3V 4-Pin QFN SMD Bulk
Datasheet
SIT8102AC-33-33E-25.00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SiTIME
Series SiT8102
Packaging Bulk
Type MEMS (Silicon)
Frequency 25MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Operating Supply Voltage 3.3V
Frequency Stability ±15ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 26mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Current - Supply (Disable) (Maximum) 50μA
Win Source Part Number 794419-SIT8102AC-33-33E-25.00000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Introduction Date September 15, 2010
Country of Origin Malaysia, Taiwan, Thailand
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SIT8102AC-33-33E-25.00000 CAD Model

Description

The SiT8102 oscillator is a high-quality electronic component from SiTIME.

  • Frequency: 25MHz
  • Series: SiT8102
  • Category: Crystals, Oscillators, and Resonators
  • Win Source Part Number: 794419-SIT8102AC-33-33E-25.00000
