Same model may have multiple batches, images only for reference.

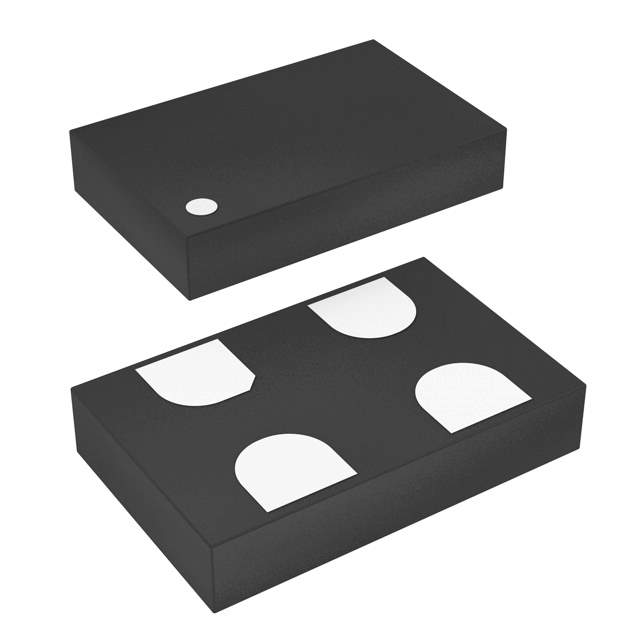

SIT8209AC-33-33E-156.250000X Real Image
Same model may have multiple batches, images only for reference.

SIT8209AC-33-33E-156.250000X

Part No SIT8209AC-33-33E-156.250000X
Manufacturer SiTIME
Catalog Oscillators
Description High Frequency Ultra Performance Oscillator, -20 to 70C, 5032, 50PPM, 3.3V, 156.25MHZ, Oe, SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Frequency 156.25 MHz
Frequency Stability 50 ppm
Height 787.4 µm
Length 5.0038 mm
Max Operating Temperature 70 °C
Max Supply Current 36 mA
Min Operating Temperature -20 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
RoHS Compliant
Width 3.2004 mm
Win Source Part Number 1201507-SIT8209AC-33-33E-156.250000X
Categories Oscillators
Manufacturer SiTIME
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SIT8209AC-33-33E-156.250000X CAD Model

Description

The SiTIME SIT8209AC-33-33E-156.250000X is a surface mount oscillator that has a frequency of 156.25 MHz and a frequency stability of 50 ppm.

  • Frequency: 156.25 MHz
  • Frequency Stability: 50 ppm
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Temperature Range: -20 °C to 70 °C
  • Maximum Supply Current: 36 mA
