Same model may have multiple batches, images only for reference.

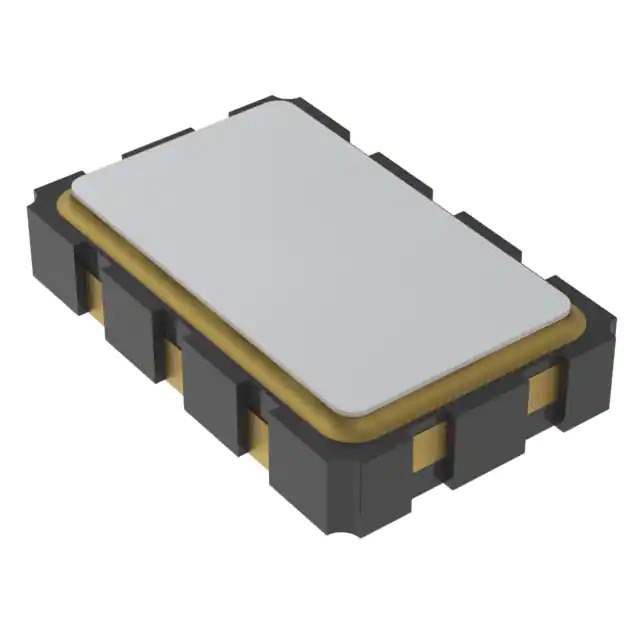

511BCA135M000BAGR Real Image
Same model may have multiple batches, images only for reference.

511BCA135M000BAGR

Part No 511BCA135M000BAGR
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 135.0000MHZ LVDS SMD
Datasheet
511BCA135M000BAGR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Skyworks Solutions Inc.
Series Si511
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 135 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 23mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.050" (1.28mm)
Current - Supply (Disable) (Max) 18mA
Base Product Number 511BCA
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 856361-511BCA135M000BAGR
Ultra Librarian 3D Model Ultra Librarian 511BCA135M000BAGR CAD Model

Description

The Si511 series XO (Standard) is a high-performance crystal oscillator manufactured by Skyworks Solutions Inc.

  • Frequency: 135 MHz
  • Output: LVDS
  • Frequency Stability: ±20ppm
  • Voltage Supply: 3.3V
  • Current Supply: 23mA (Maximum)
  • Mounting Type: Surface Mount
  • Package: 6-SMD, No Lead
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.050" (1.28mm)
  • Temperature Range: -40°C to 85°C
