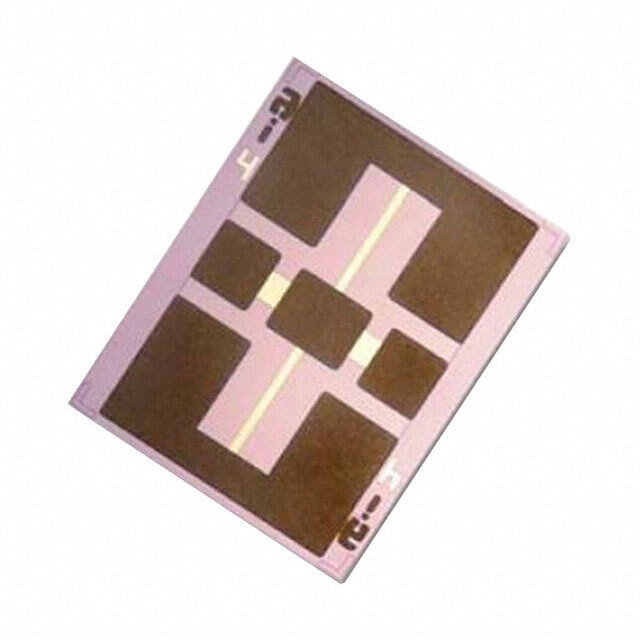

ATN3580-04 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

ATN3580-04

Part No ATN3580-04
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 4DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 4dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 709549-ATN3580-04
Ultra Librarian 3D Model Ultra Librarian ATN3580-04 CAD Model

Description

The ATN3580-04 is an attenuator from Skyworks Solutions Inc.

  • Applications: It is designed for RF and wireless applications.
  • Package: Tray
  • Power Rating: 1W
  • Frequency Range: 100 MHz to 40 GHz
  • Attenuation: 4dB
  • Package Type: Module
  • Product Status: Active
  • Series: ATN3580
