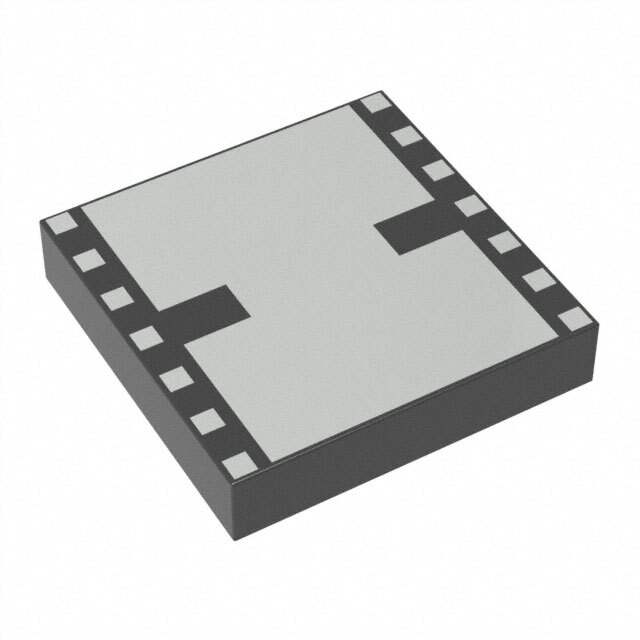

AWB7222P8 Real Image
Same model may have multiple batches, images only for reference.

AWB7222P8

Part No AWB7222P8
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP HSDPA 1.805-1.88GHZ 14SMD / RF Amplifier IC HSDPA, LTE, WCDMA 1.805GHz ~ 1.88GHz 14-SMD Module
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Frequency 1.805GHz ~ 1.88GHz
P1dB 35dBm
Gain 32dB
RF Type HSDPA, LTE, WCDMA
Voltage - Supply 4.5V
Current - Supply 796mA
Mounting Type Surface Mount
Package / Case 14-SMD Module
Supplier Device Package 14-SMD Module
Standard Package 2,500 pcs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 862696-AWB7222P8
Ultra Librarian 3D Model Ultra Librarian AWB7222P8 CAD Model

Description

The RF Amplifier with Win Source Part Number 862696-AWB7222P8 is a high-quality electronic component used in RF and wireless applications.

  • Category: RF and Wireless - RF Amplifiers
  • Packaging: Tape & Reel
  • Standard Package: 2,500 pcs
  • Frequency Range: 1.805GHz to 1.88GHz
  • Gain: 32dB
  • Current Supply: 796mA
  • P1dB: 35dBm
  • RF Type: HSDPA, LTE, and WCDMA
  • Voltage Supply: 4.5V
  • Mounting Type: Surface Mount
  • Package/Case: 14-SMD Module
  • Supplier Device Package: 14-SMD Module
  • ECCN: EAR99
  • HTSUS code: 8542.33.0001
  • Manufacturer: Skyworks Solutions Inc.
  • Product Status: Obsolete
  • MSL: 4 (72 hours)
