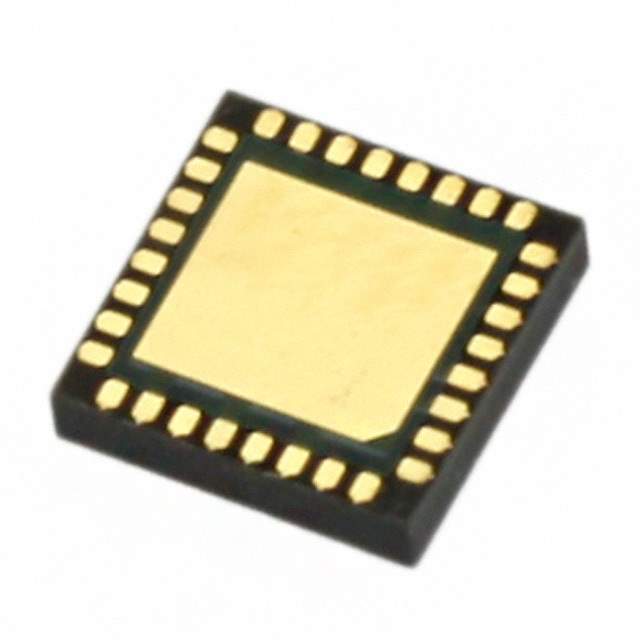

SE2548A-R Real Image
Same model may have multiple batches, images only for reference.

SE2548A-R

Part No SE2548A-R
Manufacturer Skyworks Solutions Inc.
Catalog RF Misc ICs and Modules
Description IC FRONTEND MOD 802.11ABGN 32LGA
Datasheet
SE2548A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Front End
Frequency 2.4GHz to 2.5GHz, 4.9GHz to 5.875GHz
RF Type 802.11a/b/g/n
Case / Package 32-LGA (5x5)
Win Source Part Number 119258-SE2548A-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SE2548A-R CAD Model

Description

The electronic component with Id 325284 is a front-end purpose RF/IF and RFID device manufactured by Skyworks Solutions Inc.

  • Win Source Part Number: 119258-SE2548A-R
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 5.875GHz
  • RF Type: 802.11a/b/g/n
  • Case/Package: 32-LGA (5x5)
  • Supply and Demand Status: balanced
  • Status: obsolete (EOL)
