Same model may have multiple batches, images only for reference.

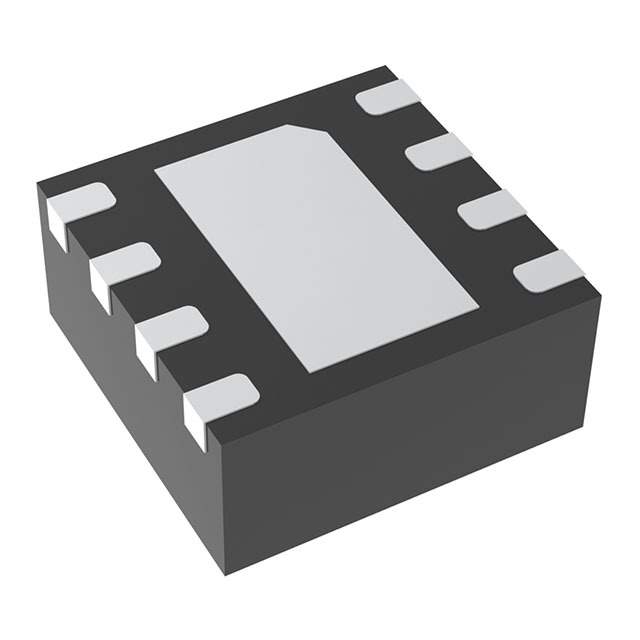

SE2609L-R Real Image
Same model may have multiple batches, images only for reference.

SE2609L-R

Part No SE2609L-R
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC PWR AMP 802.11B/G/N 8QFN
Datasheet
SE2609L-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency 2.4GHz to 2.5GHz
P1dB 25.5dBm
Gain 28dB
RF Type 802.11b/g/n
Supply Voltage - Operating 3 V to 5.5 V
Operating Supply Current 260mA
Test Frequency 2.4GHz to 2.5GHz
Case / Package 8-QFN (2x2)
Win Source Part Number 126379-SE2609L-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SE2609L-R CAD Model

Description

The Skyworks Solutions Inc. SE2609L-R is an integrated circuit that is used as an RF amplifier.

  • Gain: 28dB
  • P1dB: 25.5dBm
  • Product Category: RF/IF and RFID
  • Status: Active
  • Supply and Demand Status: Balanced
