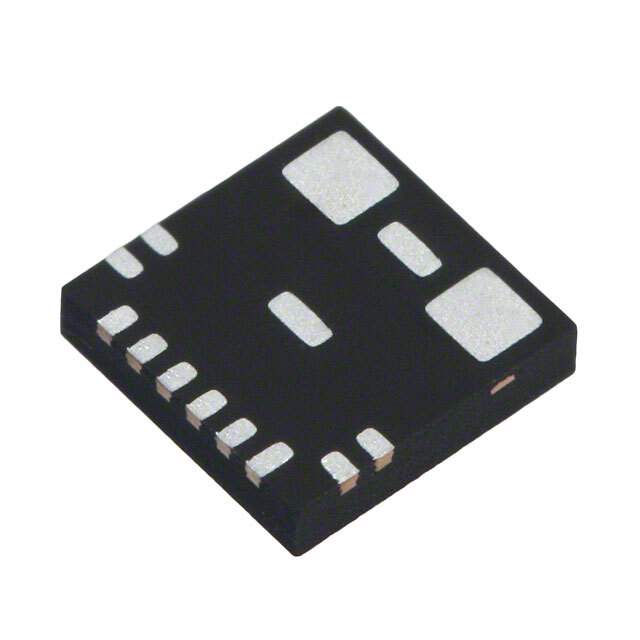

SI8502-C-IM Real Image
Same model may have multiple batches, images only for reference.

SI8502-C-IM

Part No SI8502-C-IM
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Power Management - Specialized
Description SENSOR CURRENT XFMR 10A AC / Current Sensor 10A 1 Channel Transformer w/Conditioning Unidirectional 12-VFQFN
Datasheet
SI8502-C-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Skyworks Solutions Inc.
Package Tray
Product Status Obsolete
For Measuring AC
Sensor Type Transformer w/Conditioning
Current - Sensing 10A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 196mV/A
Frequency 50kHz ~ 1MHz
Accuracy ±5%
Voltage - Supply 2.7V ~ 5.5V
Current - Supply (Max) 7mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 12-VFQFN
Supplier Device Package 12-QFN (4x4)
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-1719-5,SI8502CIM
Standard Package 75
Win Source Part Number 1092971-SI8502-C-IM
Ultra Librarian 3D Model Ultra Librarian SI8502-C-IM CAD Model

Description

The SI8502-C-IM is a transformer w/conditioning sensor type that is used for measuring AC.

  • Polarization: Unidirectional
  • Sensitivity: 196mV/A
  • Standard Package: 75
  • Mounting: SMD (SMT)
  • Frequency Range: 50kHz to 1MHz
  • Maximum Current Supply: 7mA
  • Accuracy: ±5%
  • Voltage Supply Range: 2.7V to 5.5V
  • Status: Obsolete
  • Alternative Cross-Reference Parts: ST2S06BPQR, ST2S06A33PQR, TPS61059DRCT, and TPS61058DRCR.
