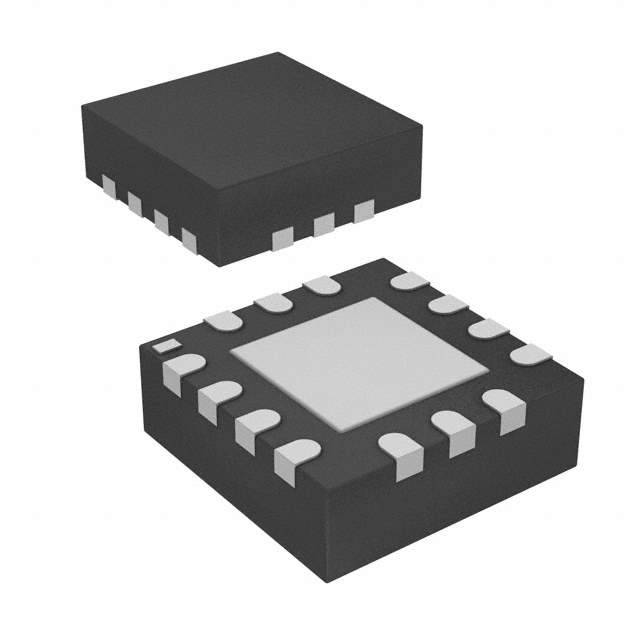

SKY13417-485LF Real Image
Same model may have multiple batches, images only for reference.

SKY13417-485LF

Part No SKY13417-485LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC ANT SW SP8T 0.1-3.0GHZ 14QFN
Datasheet
SKY13417-485LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 3GHz
Isolation @ Frequency 24dB @ 2GHz (typ)
Insertion Loss @ Frequency 0.55dB @ 2GHz
IIP3 66dBm (typ)
P1dB 37dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C to 90°C
Supply Voltage - Operating 2.5 V to 4.8 V
Case / Package 14-QFN (2x2)
Win Source Part Number 125647-SKY13417-485LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SKY13417-485LF CAD Model

Description

The Skyworks Solutions Inc. SKY13417-485LF is a 50 Ohm impedance RF switch with a frequency range of 100MHz to 3GHz.

  • Impedance: 50 Ohm
  • Frequency Range: 100MHz to 3GHz
  • Isolation: 24dB @ 2GHz (typ)
  • Insertion Loss: 0.55dB @ 2GHz
  • IIP3: 66dBm (typ)
  • P1dB: 37dBm
  • Package: 14-QFN (2x2)
  • Temperature Range: -40°C to 90°C
  • Supply Voltage: 2.5V to 4.8V
  • Category: RF/IF and RFID
  • Supply and Demand Status: balanced
