Same model may have multiple batches, images only for reference.

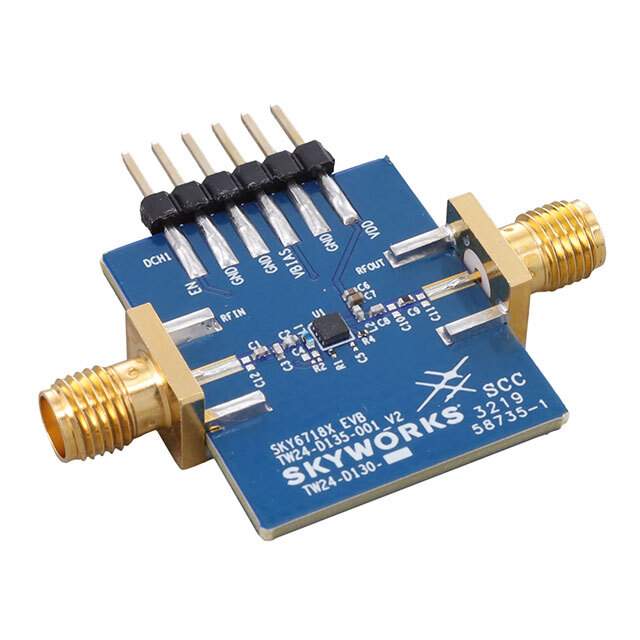

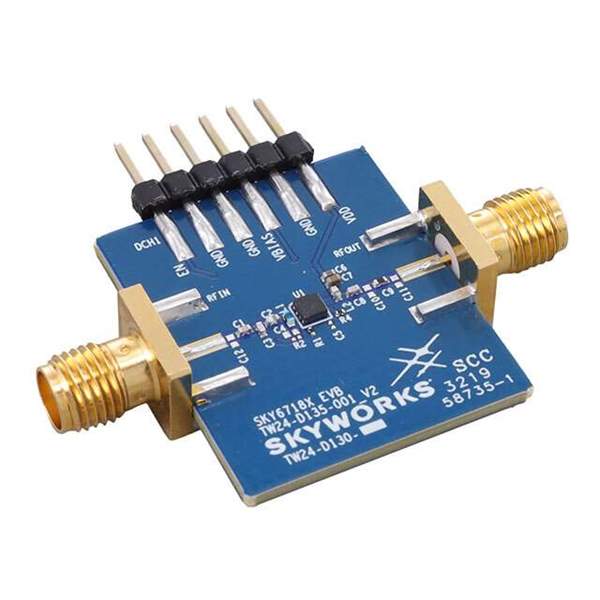

SKY67189-396EK1 Real Image
Same model may have multiple batches, images only for reference.

SKY67189-396EK1

Part No SKY67189-396EK1
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Datasheet
SKY67189-396EK1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type Amplifier
Frequency 400MHz ~ 6GHz
For Use With/Related Products SKY67189-396LF
Supplied Contents Board(s)
Base Product Number SKY67189
Other Names 863-SKY67189-396EK1
Standard Package 1
MSL Level 1 (Unlimited)
ECCN 3B992B
HTSUS 8473.30.1180
Win Source Part Number 1283417-SKY67189-396EK1
Ultra Librarian 3D Model Ultra Librarian SKY67189-396EK1 CAD Model

Description

The SKY67189-396EK1 is an amplifier development board from Skyworks Solutions Inc.

  • Designed For: Use with the SKY67189-396LF amplifier
  • Frequency Range: 400MHz to 6GHz
  • Package: box
  • Supplied: board(s)
  • ECCN: 3B992B
  • Standard Package: 1
  • MSL Level: 1 (Unlimited)
  • Ideal For: RF evaluation and development kits
