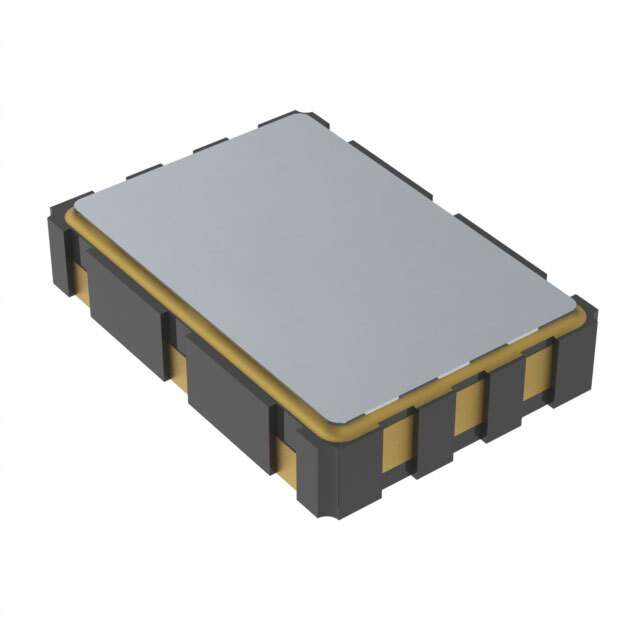

530EA114M285DG Real Image
Same model may have multiple batches, images only for reference.

530EA114M285DG

Part No 530EA114M285DG
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 114.2850MHZ LVPECL / 114.285 MHz XO (Standard) LVPECL Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
530EA114M285DG Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Skyworks Solutions Inc.
Packaging Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 114.285 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 121mA
Mounting Surface Mount
Case / Package 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 75mA
Base Product Number 530EA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 50
Win Source Part Number 1328185-530EA114M285DG
Ultra Librarian 3D Model Ultra Librarian 530EA114M285DG CAD Model

Description

The 530EA114M285DG is an oscillator manufactured by Skyworks Solutions Inc.

  • Manufacturer: Skyworks Solutions Inc.
  • Product Name: 530EA114M285DG
  • Packaging: Strip
  • Oscillator Type: XO (Standard)
  • Size/Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height - Seated (Max): 0.071" (1.80mm)
  • Standard Package: 50 Units
  • Mounting: Surface Mount
  • Frequency: 114.285 MHz
  • Function: Enable/Disable
  • Output: LVPECL
  • Frequency Stability: ±50ppm
  • Current Supply Required: 121mA
  • Current Supply (Disable): 75mA
  • Voltage Supply Range: 2.5V
  • Operating Temperature: -40°C to 85°C
  • Case/Package: 6-SMD, No Lead
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
  • Base Product Number: 530EA
  • Win Source Part Number: 1328185-530EA114M285DG
