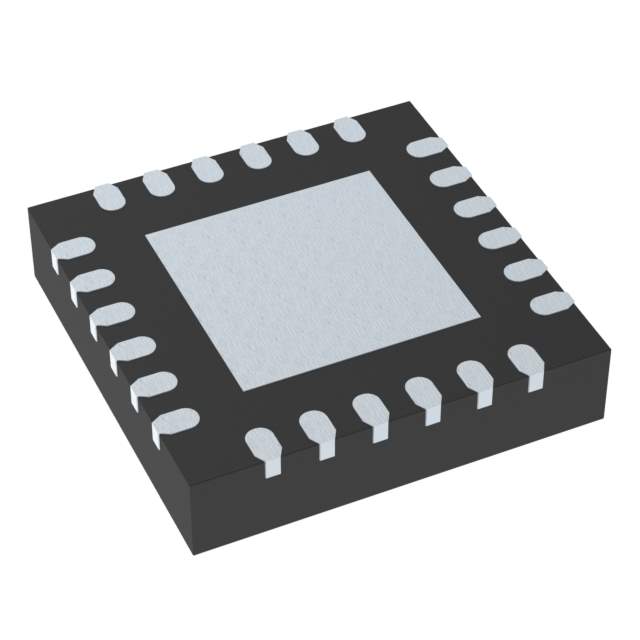

The SI5335D-B07430-GM is a quad clock generator offered by Skyworks Solutions Inc. It is part of their SI5335D family, designed for applications demanding multiple, independent clock signals with precise frequency control and low jitter. The device integrates a high-performance PLL (Phase-Locked Loop) core and four output drivers, enabling flexible clock synthesis and distribution.

Applications:

• Networking infrastructure (routers, switches, servers)
• Data center equipment
• Optical networking
• Video and broadcast systems
• Industrial automation

Features:

• Four independent clock outputs
• Any-frequency synthesis capability
• Ultra-low phase jitter performance
• I2C or SPI serial interface for configuration
• Integrated Voltage Controlled Oscillator (VCO)
• LVCMOS compatible output drivers
• Small form-factor packaging

Benefits:

• Streamlined clock tree design, reducing complexity
• Minimized BOM (Bill of Materials) costs through integration
• Enhanced system performance due to low-jitter clock signals
• Flexible frequency planning to meet diverse requirements
• Simplified configuration and control via serial interface
• Compact solution for space-constrained applications

Additional Details:

The SI5335D-B07430-GM leverages Skyworks' advanced PLL technology, enabling the generation of a wide range of output frequencies from a single reference clock input. Each of the four outputs can be individually configured for different frequencies and drive strengths, offering significant versatility. Programming is typically accomplished via I2C or SPI interface, allowing customization of output frequencies and other parameters. The 'B07430' portion of the part number specifies a factory programmed configuration. It is imperative to refer to the device datasheet and ordering information to fully understand the configuration and performance specifications. The 'GM' suffix typically indicates the package type and temperature range.

The device operates from a single power supply voltage (typically 1.8V or 3.3V). Careful attention to power supply filtering is necessary to minimize noise. Proper PCB layout techniques are crucial for optimal jitter performance. Recommendations include minimizing trace lengths, using controlled impedance traces, and providing sufficient ground planes. The datasheet provides comprehensive guidance for PCB layout and power supply decoupling.
