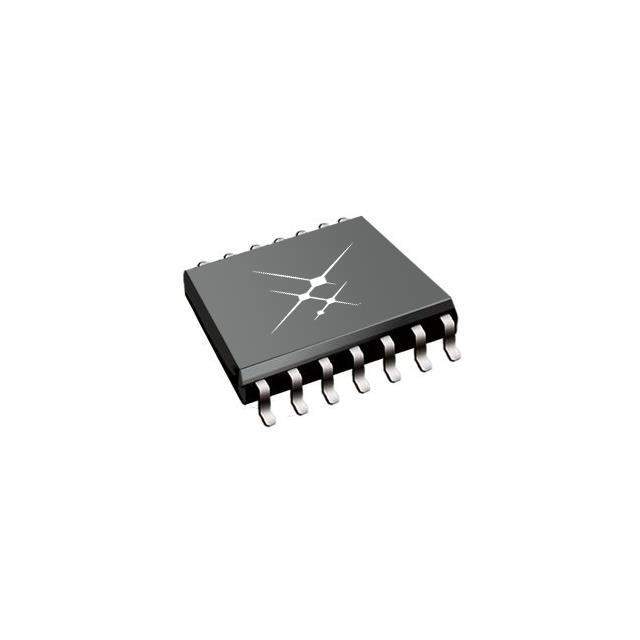

SI8230AD-D-IS3 Real Image
Same model may have multiple batches, images only for reference.

SI8230AD-D-IS3

Part No SI8230AD-D-IS3
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER, 8 MM CREEP / 500mA Gate Driver Capacitive Coupling 5000Vrms 2 Channel 14-SOIC
Datasheet
SI8230AD-D-IS3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 20ns, 20ns
Current - Output High, Low 250mA, 500mA
Current - Peak Output 500mA
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-SOIC (0.295", 7.50mm Width)
Supplier Device Package 14-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8230
Other Names 336-4256
Standard Package 46
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243536-SI8230AD-D-IS3
Ultra Librarian 3D Model Ultra Librarian SI8230AD-D-IS3 CAD Model

Description

The Skyworks Solutions Inc. SI8230AD-D-IS3 is an isolator electronic component that comes in a 14-SOIC (0.295", 7.50mm Width) package.

  • Product Type: isolator-gate driver
  • Technology: capacitive coupling
  • Current Output High: 250mA
  • Current Output Low: 500mA
  • Common Mode Transient Immunity: 45kV/μs
  • Voltage Isolation: 5000Vrms
  • Ideal for: electronic devices that require a 14-SOIC package
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8542.39.0001
