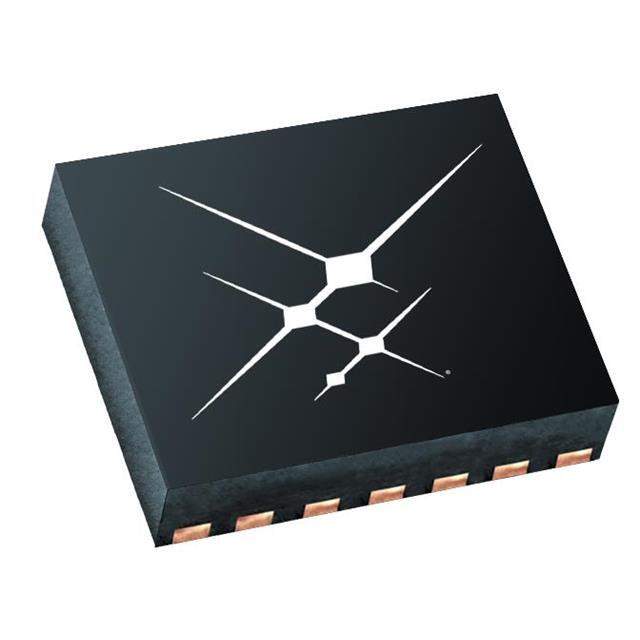

SI8275BB-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8275BB-IM1

Part No SI8275BB-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 4A 2.5 KV HIGH CMTI DUAL GATE DR / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8275BB-IM1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 150kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 8ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI8275
Other Names 336-5943
Standard Package 490
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243748-SI8275BB-IM1
Ultra Librarian 3D Model Ultra Librarian SI8275BB-IM1 CAD Model

Description

The Skyworks Solutions Inc. SI8275BB-IM1 is an isolator that belongs to the gate drivers category.

  • Package: Tube
  • Standard Package: 490
  • Mounting: SMD (SMT)
  • Technology: Capacitive coupling
  • Current Output High: 1.8A
  • Current Output Low: 4A
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity (min): 150kV/μs
  • Propagation Delay tpLH / tpHL (max): 60ns, 60ns
  • Current Peak Output: 4A
  • Pulse Width Distortion (max): 8ns
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
  • Approvals: CQC, CSA, UL, VDE
