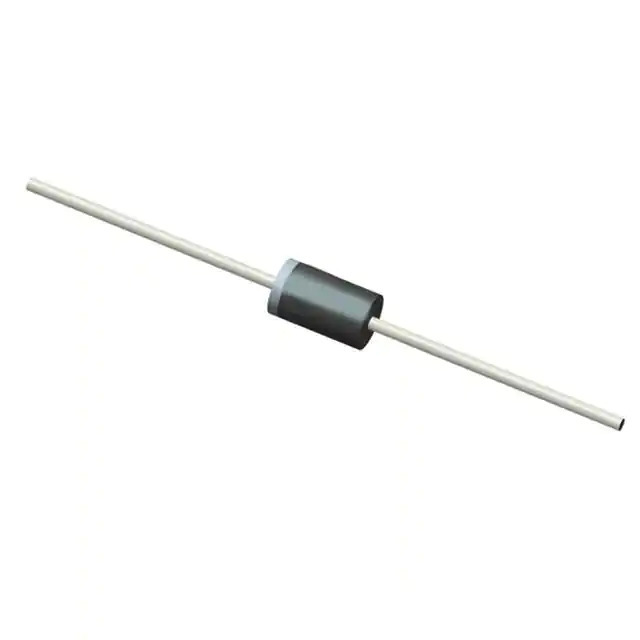

Same model may have multiple batches, images only for reference.
31DQ05 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

31DQ05

Part No 31DQ05
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 3.3A DO201AD
Datasheet
31DQ05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series -
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3.3A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 50 V
Capacitance @ Vr, F 160pF @ 5V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 31DQ
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377448-31DQ05
Ultra Librarian 3D Model Ultra Librarian 31DQ05 CAD Model

Description

The 1377448-31DQ05 is a Schottky rectifier diode from SMC Diode Solutions. 1377448-31DQ05.

  • Maximum Reverse Voltage: 50V
  • Average Rectified Current: 3.3A
  • Forward Voltage: 620mV @ 3A
  • Recovery Time:
  • Reverse Leakage Current: 2mA @ 50V
  • Capacitance: 160pF @ 5V, 1MHz
  • Operating Temperature: -40°C to 150°C
  • Package: DO-201AD
  • Mounting Type: Through-hole
  • REACH: Compliant
  • ECCN: EAR99
