Same model may have multiple batches, images only for reference.

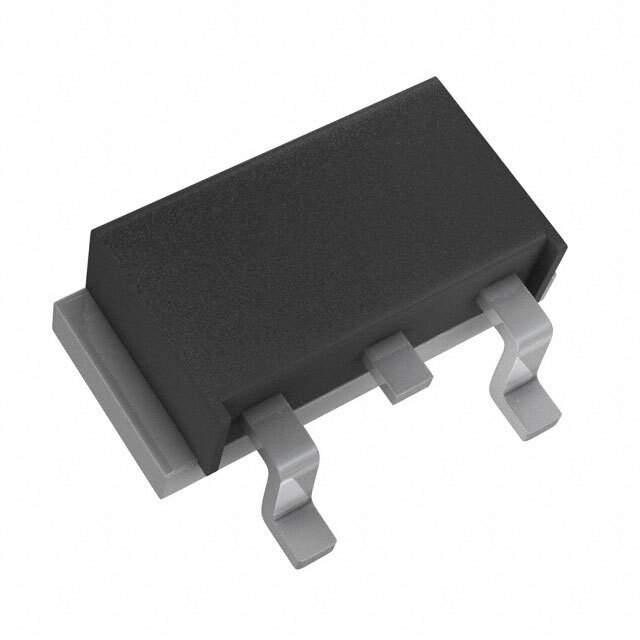

60CNQ045SL Real Image
Same model may have multiple batches, images only for reference.

60CNQ045SL

Part No 60CNQ045SL
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 45V 30A PRM3-SL
Datasheet
60CNQ045SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 640mV @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 45V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package PRM3-SL
Win Source Part Number 129508-60CNQ045SL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 60CNQ045SL CAD Model

Description

60CNQ045SL: Schottky Rectifier

The 60CNQ045SL is a high-efficiency Schottky rectifier ideal for applications that require high-speed switching and low forward voltage drop. This rectifier improves energy efficiency in electronic devices.

  • Applications: Power supplies, inverters, battery chargers, DC-to-DC converters
  • Features & Benefits: Low forward voltage drop, high current capability, fast switching, thermal efficiency
  • Additional Details: It is packaged in a compact TO-220AB, making it suitable for compact circuit designs.
