Same model may have multiple batches, images only for reference.

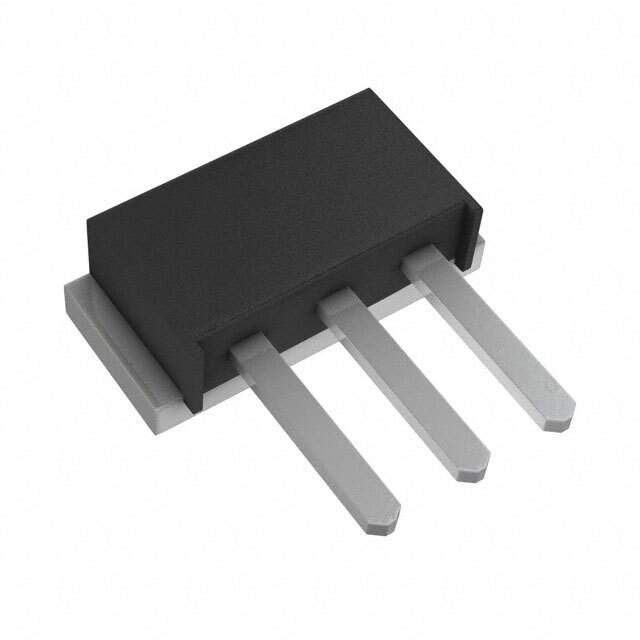

83CNQ100SM Real Image
Same model may have multiple batches, images only for reference.

83CNQ100SM

Part No 83CNQ100SM
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 40A PRM2-SM
Datasheet
83CNQ100SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 5 Weeks
Features Diode Array 1 Pair Common Cathode Schottky 100 V 40A Through Hole PRM2-SM
Manufacturer SMC Diode Solutions
Package Bulk
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package PRM2-SM
Case / Package PRM2-SM
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 48
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908520-83CNQ100SM
Ultra Librarian 3D Model Ultra Librarian 83CNQ100SM CAD Model

Description

The SMC Diode Solutions 83CNQ100SM is a diode array with 1 pair common cathode Schottky 100V 40A through hole PRM2-SM features.

  • Manufacturer: SMC Diode Solutions
  • Product Type: Diode Array
  • Configuration: 1 Pair Common Cathode
  • Diode Type: Schottky
  • Voltage: 100V
  • Current: 40A
  • Package: PRM2-SM
  • Mounting: Through Hole
  • Recovery Speed: Fast, less than 500ns and greater than 200mA (Io)
  • Package Type: Bulk
  • Estimated Production Lead Time: 5 weeks
