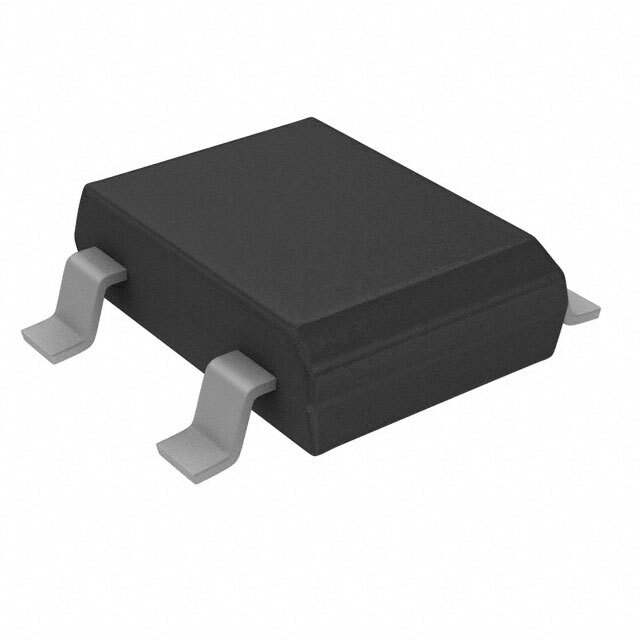

DB156S Real Image
Same model may have multiple batches, images only for reference.

DB156S

Part No DB156S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 1.5A DB-S
Datasheet
DB156S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB156
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584109-DB156S
Ultra Librarian 3D Model Ultra Librarian DB156S CAD Model

Description

The 584109-DB156S is a bridge rectifier diode designed for discrete semiconductor applications.

  • Type: Single-phase
  • Current Rating: 1.5A
  • Forward Voltage Drop: 1.1V @ 1.5A
  • Maximum Reverse Voltage: 800V
  • Reverse Leakage Current: 5µA @ 800V
  • Package Type: 4-SMD (Gull Wing)
  • Mounting: Surface mount
  • Standard Package Quantity: 1,500 pcs
  • Packaging: Tape and Reel
  • Operating Temperature: -55°C to 150°C (TJ)
  • Manufacturer: SMC Diode Solutions
  • Status: Active
